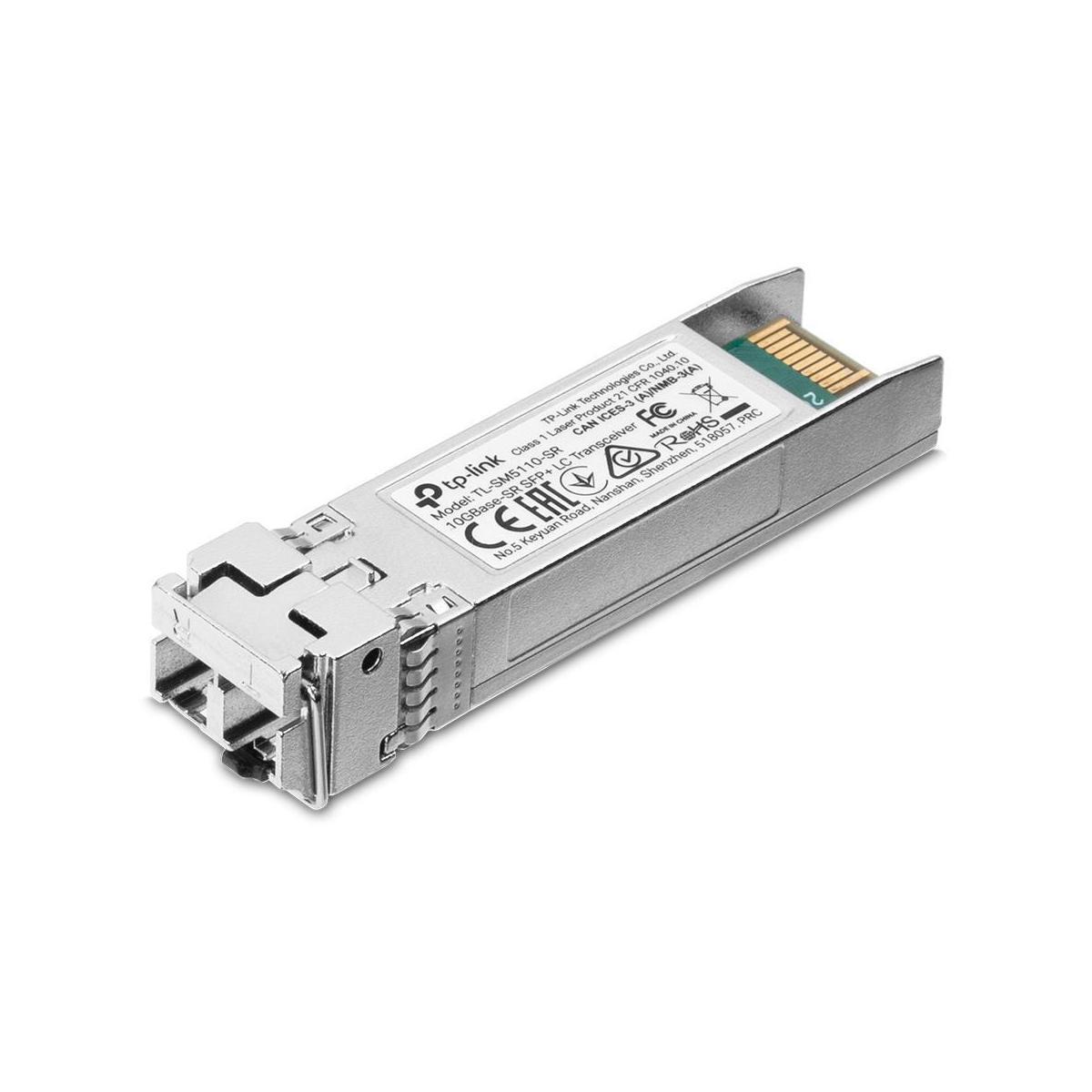

TP-Link TL-SM5110-SR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable

The TP-Link TL-SM5110-SR is a 10GBASE-SR high performance multi-mode SFP+ transceiver designed to extend transfer distances based on 10Gbps Ethernet connectivity. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Hardware Features

• Digital Diagnostic Monitoring (DDM): Yes
• SFP Multi-Source Agreement (MSA) Compatible: Yes
• Hot Swappable: Yes

Transceiver Specifications

• Standards and Protocols: IEEE 802.3ae, TCP/IP, SFF-8472
• Wavelength: 850nm
• Data Rate: 10Gbps
• Fiber Type: 50/125um or 62.5/125um Multi-mode
• Maximum Cable Length (OM3): 300m
• Power Supply: 3.3V
• Port Type: LC/UPC

Safety and Environmental Standards

• FCC, CE Safety Emission
• Operating Temperature: 0–70 ℃ (32–158 ℉)
• Storage Temperature: -40–80 ℃ (-40–176 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
