TP-Link

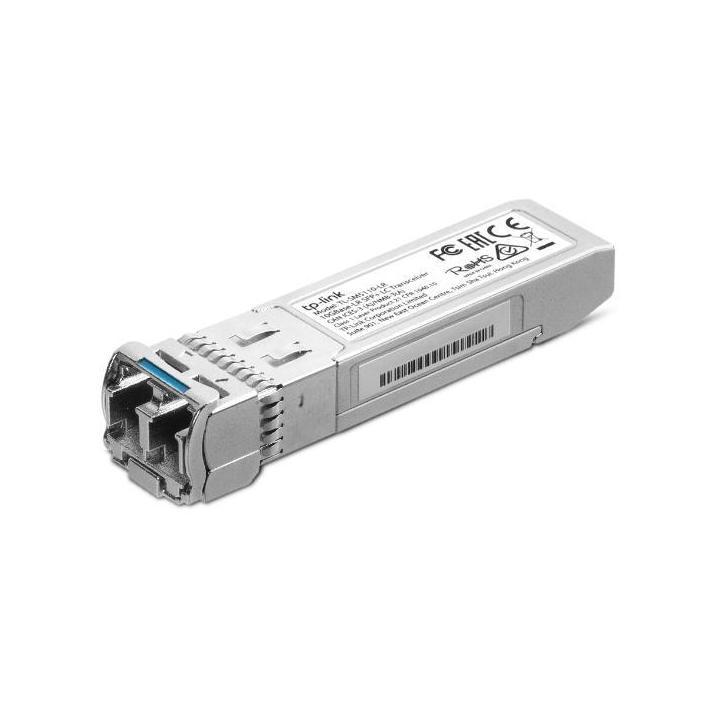

TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver 10KM
Regular price
$69.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (20)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 120 mm |
|---|---|
| Width | 84 mm |
| Height | 38 mm |
Product Details
Product Details
The TP-Link TL-SM5110-LR is a 10GBase-LR SFP+ LC transceiver designed for high-speed data transmission over long distances. It supports digital diagnostic monitoring and is compatible with the Small Form Pluggable Multi-Source Agreement (SFP+ MSA).
Features
- Hot-pluggable design for maximum flexibility
- Digital Diagnostic Monitoring (DDM) support
- SFP+ MSA compatibility
- Compatible with switches featuring 10G SFP+ ports, such as the JetStream TL-SG3428X and TL-SG3428XMP
Technical Specifications
- Standards and Protocols: IEEE 802.3ae, TCP/IP
- Wavelength: 1310 nm
- Data Rate: 10 Gbps
- Fiber Type: 9/125um single-mode
- Maximum Cable Length: 10 km
- Power Supply: 3.3V
- Port Type: LC duplex
Safety and Environmental Standards
- Safety Emission: FCC, CE
- Operating Temperature: 0–70 °C (32–158 °F)
- Storage Temperature: -40–85 °C (-40–185 °F)
- Operating Humidity: 10–90% RH, non-condensing
- Storage Humidity: 5–90% RH, non-condensing
Dimensions and Weight
- Width (W): 122.5 mm
- Depth (D): 81.5 mm
- Height (H): 38.5 mm
- Weight: 0.06 kg
Warranty
Warranty
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
