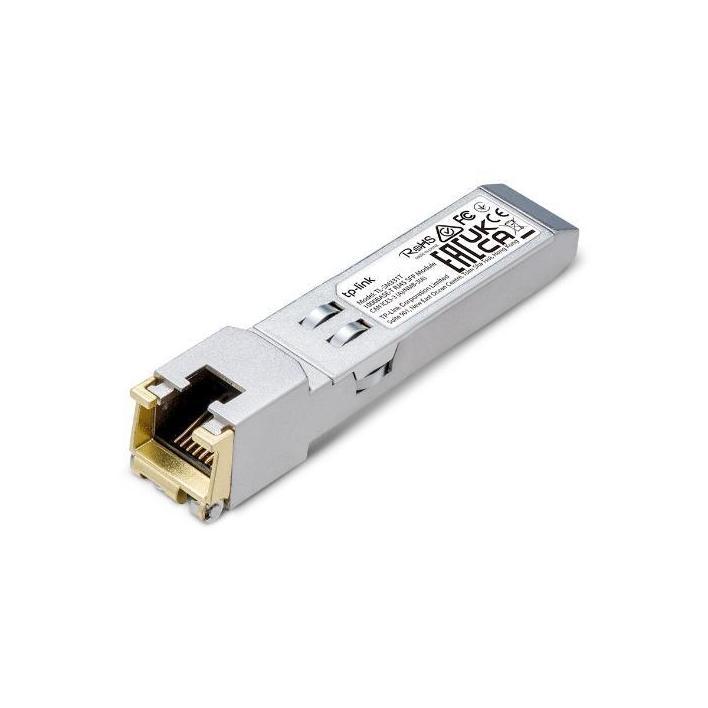

TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module 100m Reach
Regular price
$39.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (20)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 124 mm |
|---|---|
| Width | 80 mm |
| Height | 40 mm |
Product Details
Product Details
The TP-Link TL-SM331T is a 1000BASE-T RJ45 SFP module designed for high-speed data transmission over UTP Cat 5e or higher cables up to a distance of 100m. It supports the IEEE Std 802.3-2002 standard and features TX Disable functionality.
Features
- Supports 1000BASE-T operation in host systems
- TX Disable function for enhanced control over data transmission
- Fully metallic enclosure to minimise EMI
- Low power dissipation (typical: 0.5 W, max: 0.8 W)
- HOT-PLUGGABLE SFP footprint design
- Commercial product operating temperature range of 0–70°C
- FCC and CE safety emission compliance
Technical Specifications
- Data rate: 1.25 Gbps
- Power supply: 3.3V max.
- Cable length: up to 100m (Cat 5e or above)
- Port type: 1 × 1000 Mbps RJ45 port
- Operating temperature: 0–70°C
- Storage temperature: -40–85°C
Package Contents
- TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module
- Installation guide
Warranty
Warranty
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
