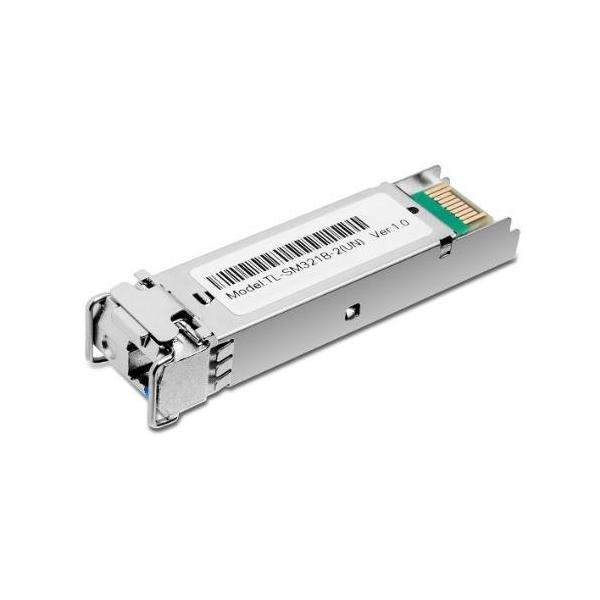

TP-Link TL-SM321B-2 1000Base-BX WDM SFP Module TX 1310nm RX 1550nm 2KM LC Simplex
Available in stock (13)
Couldn't load pickup availability
Specifications
Specifications
Case & Build
| Material | Plastic |
|---|
Dimensions
| Length | 82 mm |
|---|---|
| Width | 124 mm |
| Height | 40 mm |
Other
| Colour | Black |
|---|
Description
Description
The TP-Link TL-SM321B-2 is a 1000Base-BX WDM SFP module designed for high-speed data transmission over single-mode fibre up to 2 km in distance. It supports Digital Diagnostic Monitoring (DDM) and is compatible with the Small Form Pluggable Multi-Source Agreement (SFP-MSA).
Hardware Features
- Digital Diagnostic Monitoring (DDM): Yes
- SFP-MSA Compatibility: Yes
- Hot Swappable: Yes
Media Converter Module Specifications
- Standards and Protocols: IEEE 802.3z, TCP/IP
- Wave Length: Tx: 1310 nm, Rx: 1550 nm
- Data Rate: 1.25 Gbps
- Power Supply: 3.3V
- Cable Type: Single-Mode Fiber (9/125 μm)
- Max Cable Length: 10 km
- Port Type: LC Simplex
- Safety Emission: FCC, CE
Environmental Specifications
- Operating Temperature: 0–70 °C (32–158 °F)
- Storage Temperature: -40–85 °C (-40–185 °F)
- Operating Humidity: 10–90% RH, Non-Condensing
- Storage Humidity: 5–90% RH, Non-Condensing
Manuals & Downloads (1)
Manuals & Downloads (1)
- Product Brochure · Datasheet, PDF
