TP-Link

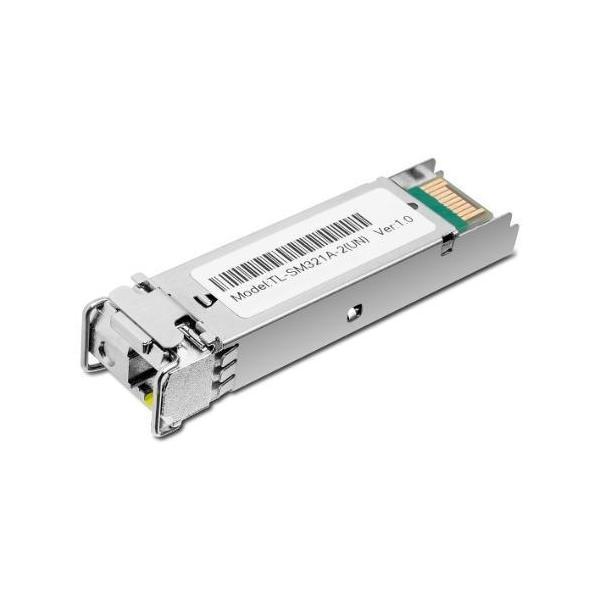

TP-Link TL-SM321A-2 2KM SFP Module TX 1550nm RX 1310nm
Regular price
Sale price
$28.10
Regular price
$39.00
Tax included.
Shipping calculated at checkout.
Available in stock (27)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 124 mm |
|---|---|
| Width | 82 mm |
| Height | 42 mm |
Product Details
Product Details
The TP-Link TL-SM321A-2 is a 1000Base-BX WDM Bi-Directional SFP Module designed for high-speed data transmission over single-mode fibre. It supports up to 2 km of transmission distance in 9/125 μm SMF (Single-Mode Fiber) and adheres to the Small Form Pluggable Multi-Source Agreement (SFP-MSA).
Hardware Features
- Digital Diagnostic Monitoring (DDM): Yes
- SFP-MSA Compatibility: Yes
- Hot Swappable: Yes
Standards and Protocols
- IEEE 802.3z, TCP/IP
Media Converter Module Details
- Wave Length: TX: 1550 nm RX: 1310 nm
- Data Rate: 1.25 Gbps
- Power Supply: 3.3 V
- Port Type: LC Simplex
- Fibre Type: 9/125 μm Single-Mode
- Max Cable Length: 2 km
Safety and Environmental Specifications
- Safety Emission: FCC, CE
- Operating Temperature: 0–70 °C (32–158 °F)
- Storage Temperature: -40–85 °C (-40–185 °F)
- Operating Humidity: 10–90% RH, Non-Condensing
- Storage Humidity: 5–90% RH, Non-Condensing
Warranty
Warranty
Manufacturer warranty 36 Months
