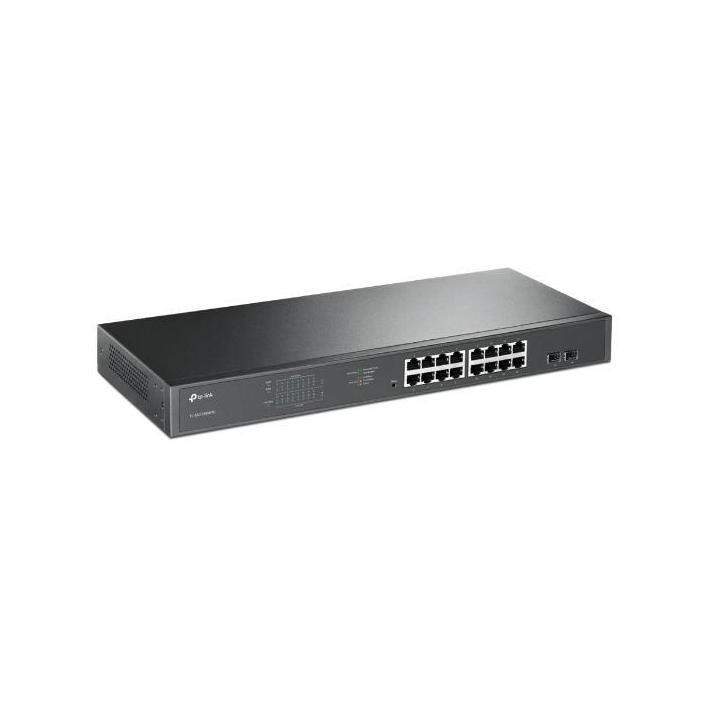

TP-Link TL-SG1218MPE 16-Port Gigabit PoE+ Smart Switch 2 SFP Slots 192W PoE Power

The TP-Link TL-SG1218MPE is a versatile and powerful 16-port Gigabit PoE+ Smart Switch designed for small to medium business surveillance systems. It features two SFP slots and supports up to 192W of PoE power budget, ensuring reliable operation for network devices requiring high power.

Performance

• Switching Capacity: 36 Gbps
• Packet Forwarding Rate: 23.8 Mbps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame Support: 9 KB

Connectivity

• Ports: 16 PoE+ 10/100/1000Mbps RJ45 Ports, 2 Fiber Ports (SFP)
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 STP (maximum 100m)
  • 1000BASE-X MMF, SMF

Power and Cooling

• Fans: 2 Fans
• Physical Security Lock: Yes
• Power Supply: 100-240V AC, 50/60 Hz
• Max Power Consumption:
  • No PD connected: 18.73 W (220/50Hz)
  • With 192W PD connected: 217.22 W (220/50Hz)
• Max Heat Dissipation:
  • No PD connected: 63.89 BTU/h
  • With 192W PD connected: 741.15 BTU/h

HARDWARE FEATURES

• Standards and Protocols:
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
  • IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

The switch includes intelligent power management to prevent overload and ensures a smooth internet-surfing experience with Quality of Service (QoS) features.
