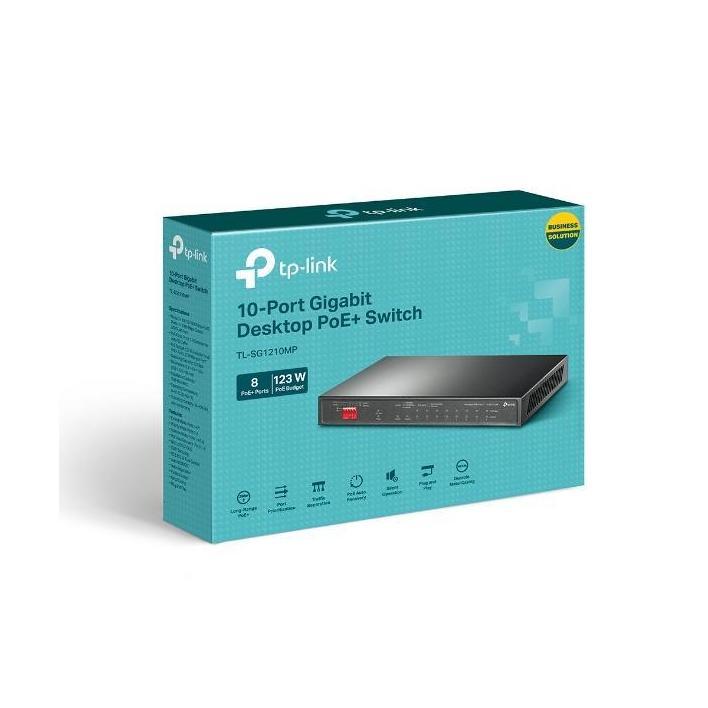

TP-Link TL-SG1210MP 10-Port Gigabit PoE+ Desktop Switch 8x PoE+Ports 2x Non-PoE Ports

The TP-Link TL-SG1210MP is a versatile desktop switch designed for small to medium-sized networks requiring both data and power transmission over Ethernet cables. It features 9 Gigabit RJ45 ports and an additional gigabit combo SFP/RJ45 port, providing flexible connectivity options.

Display

N/A

Performance

• Packet Forwarding Rate: 14.88 Mpps
• Switching Capacity: 20 Gbps
• Jumbo Frame: 16 KB
• MAC Address Table: 4K entries

Storage

N/A

Connectivity

• 9 Gigabit RJ45 Ports (8 with PoE+ support)
• 1 Gigabit Combo SFP/RJ45 Port
• PoE Power Budget: 123 W total, up to 30 W per port
• Data and power transmission range under Extend Mode: Up to 250 m
• Fanless design for silent operation
• External Power Supply: External Power Adapter (Output: 53.5VDC / 2.43A)

Software Features

• PoE Auto Recovery: Automatically reboots dropped or unresponsive PoE-powered devices
• Priority Mode: Ensures high priority for ports 1–2 to guarantee quality of sensitive applications
• Isolation Mode: One-click client traffic separation for higher security and performance
• Fanless Design: Reduces power consumption and operates silently
• No configuration required, plug-and-play functionality

Physical Security

• Lockable design to secure the switch from unauthorized access

Power Consumption

• 7.93 W (220V / 50Hz with no PD connected)
• 141.40 W (220V / 50Hz with 123 W PD connected)

Heat Dissipation

• 27.04 BTU/h (220V / 50Hz with no PD connected)
• 482.17 BTU/h (220V / 50Hz with 123 W PD connected)

Network Media Support

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

Compatibility

• IEEE 802.3af/at PoE+ compliant
• Auto Negotiation and Auto MDI/MDIX supported
