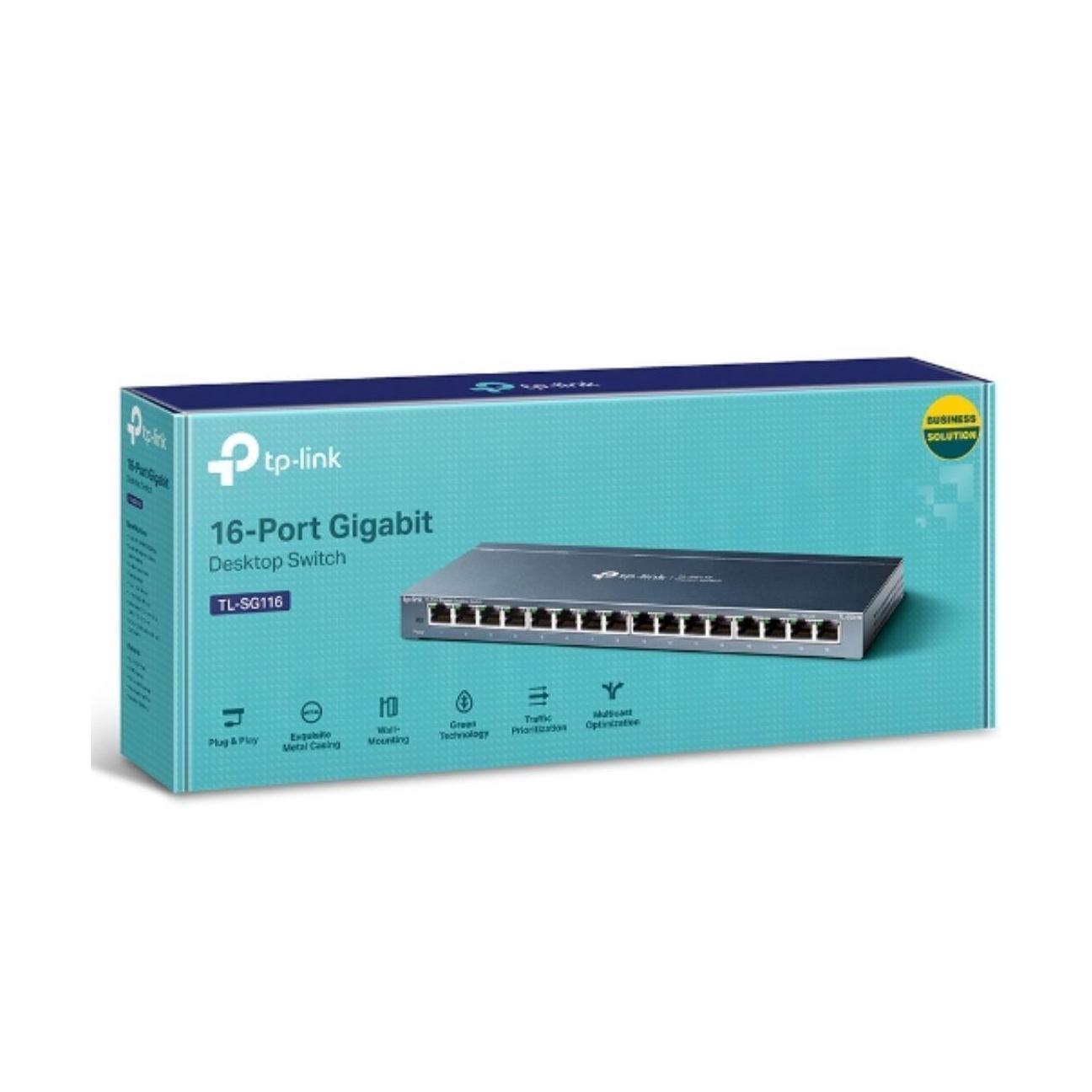

TP-Link TL-SG116 16-Port Gigabit Unmanaged Desktop/Wall Mount Switch 32Gbps Capacity

The TP-Link TL-SG116 is a versatile unmanaged gigabit switch designed for desktop or wall mounting. It supports up to 16 ports with auto-negotiation and Auto-MDI/MDIX capabilities, making it easy to connect various devices without configuration.

Performance

• Packet Forwarding Rate: 23.8 Mpps
• MAC Address Table: 8K entries
• Packet Buffer Memory: 4.1 Mb
• Jumbo Frame Support: 10 KB

Connectivity

• Ports: 16 x 10/100/1000Mbps Auto-Negotiation RJ45 ports
• Fanless Design
• Power Consumption: Maximum 10.0W
• External Power Supply: 12VDC / 1.0A Adapter

Certifications and Standards

• Compliance: CE, FCC, RoHS
• Standards: IEEE 802.3i/802.3u/802.3ab/802.3x/802.1p

Environmental Specifications

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Relative Humidity: Operating 10% to 90%, non-condensing; Storage 5% to 90%, non-condensing

Features

• Green Technology: Saves power consumption.
• 802.3X Flow Control: Provides reliable data transfer.
• QoS Support: 802.1p/DSCP prioritisation for traffic management.
• IGMP Snooping: Enhances multicast performance.

The TP-Link TL-SG116 comes with a power adapter, installation guide, and rubber feet for stable placement on any surface.
