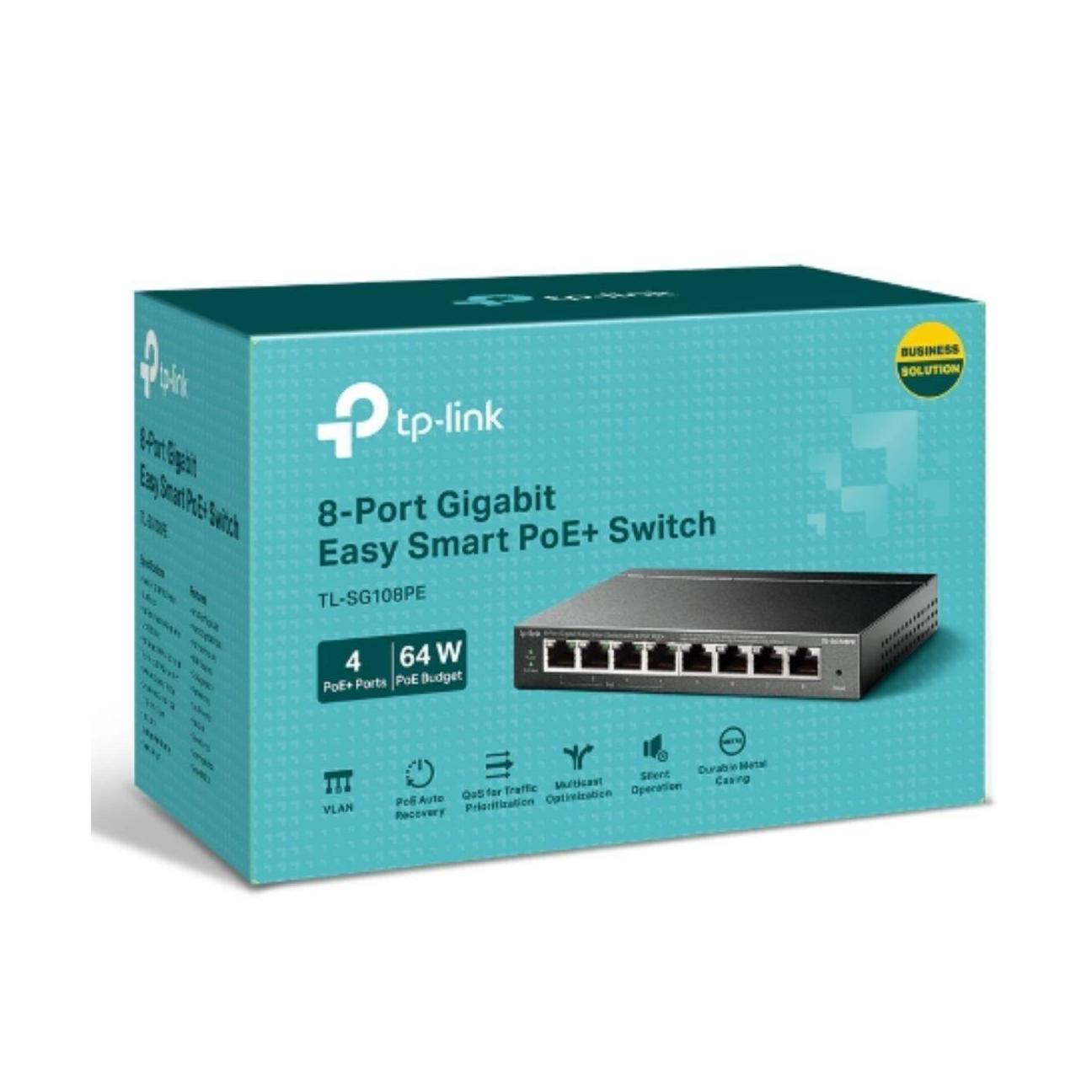

TP-Link TL-SG108PE 8-Port Gigabit PoE Smart Switch 4x PoE Ports 55W Fanless

The TP-Link TL-SG108PE is an 8-port Gigabit Easy Smart Switch with four Power over Ethernet (PoE) ports designed for small businesses requiring simple network management and PoE functionality. This switch supports the connection and power supply of up to four PoE devices, such as wireless access points, IP cameras, and IP phones.

Performance

• Switching Capacity: 16Gbps
• Packets Forwarding Rate: 11.9Mpps
• MAC Address Table: 4K
• Packet Buffer Memory: 1.5Mb

Connectivity

• 8 x 10/100/1000Mbps RJ45 Ports
• Fanless Design
• External Power Adapter (Output: 48VDC / 1.25A)
• PoE+ Ports: Port 1-Port 4, Compliant with IEEE 802.3af
• PoE Power Budget: 55W

Features

• Network Monitoring and Traffic Prioritization
• VLAN Support (port-based, tag-based, MTU)
• QoS Enhancements
• Simplified Network Setup with Plug-and-Play Connectivity
• Web-Based User Interface for Configuration
• EASY SMART Configuration Utility

Standards and Protocols

• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Auto Negotiation/Auto MDI/MDIX

Network Media

• 10BASE-T: UTP Category 3, 4, 5 Cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP Category 5, 5e Cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP Category 5, 5e, 6 or above Cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)

Power Consumption

• Maximum with PoE On: 65.2W (220V/50Hz)
• Maximum with PoE Off: 5.2W (220V/50Hz)
