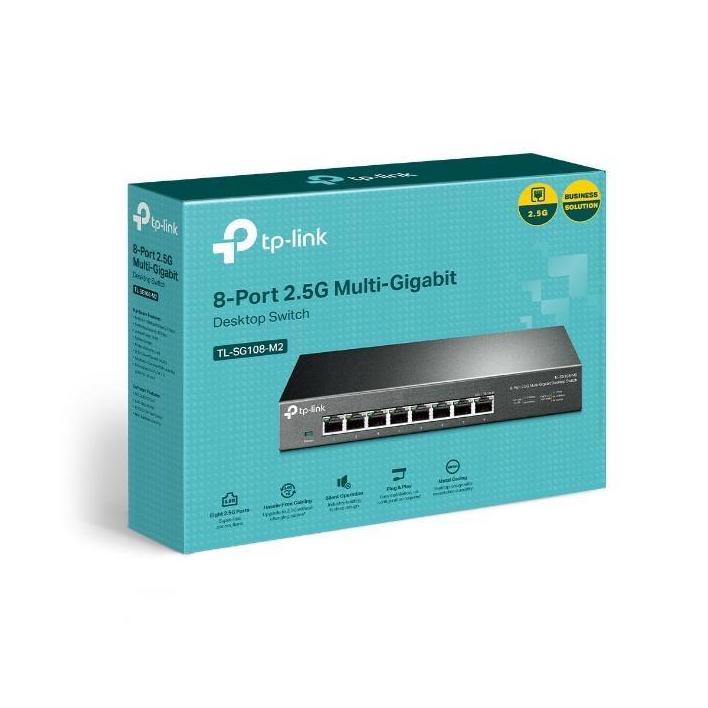

TP-Link TL-SG108-M2 8-Port 2.5G Desktop Switch 40G Switching Capacity

The TP-Link TL-SG108-M2 is an 8-port 2.5G desktop switch designed to provide high-speed connectivity for Multi-Gig devices and networks. It supports up to 40 Gbps of switching capacity, making it ideal for home entertainment systems, small offices, and LAN parties.

Display

• No display screen

Performance

• Switching Capacity: 40 Gbps
• Packet Forwarding Rate: 29.8 Mpps

Storage

• No storage capacity

Connectivity

• Eight 100Mbps/1Gbps/2.5Gbps ports with Auto-Negotiation and Auto-MDI/MDIX
• Fanless design for silent operation
• External Power Supply: 12 VDC / 1.5 A
• LED Indicators: System Power (1), Link/Act per port (8)
• Certifications: CE, FCC, RoHS

Hardware Features

• Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
• Dimensions (W x D x H): 8.9×5.2×1.4 in (226×131×35 mm)
• Max Power Consumption: 15.65 W
• MAC Address Table: 16 K
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame Support: 10 KB
• Metal casing with desktop/wall-mounting design

Software Features

• Advanced Features: 802.3X Flow Control, 802.1p/DSCP QoS

Environment

• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing

Package Contents

• TP-Link TL-SG108-M2 8-Port 2.5G Multi-Gigabit Desktop Switch
• Power Adapter
• Installation Guide
• Rubber Feet

The TP-Link TL-SG108-M2 is a plug-and-play solution that simplifies network upgrades without the need for additional wiring or technical expertise.
