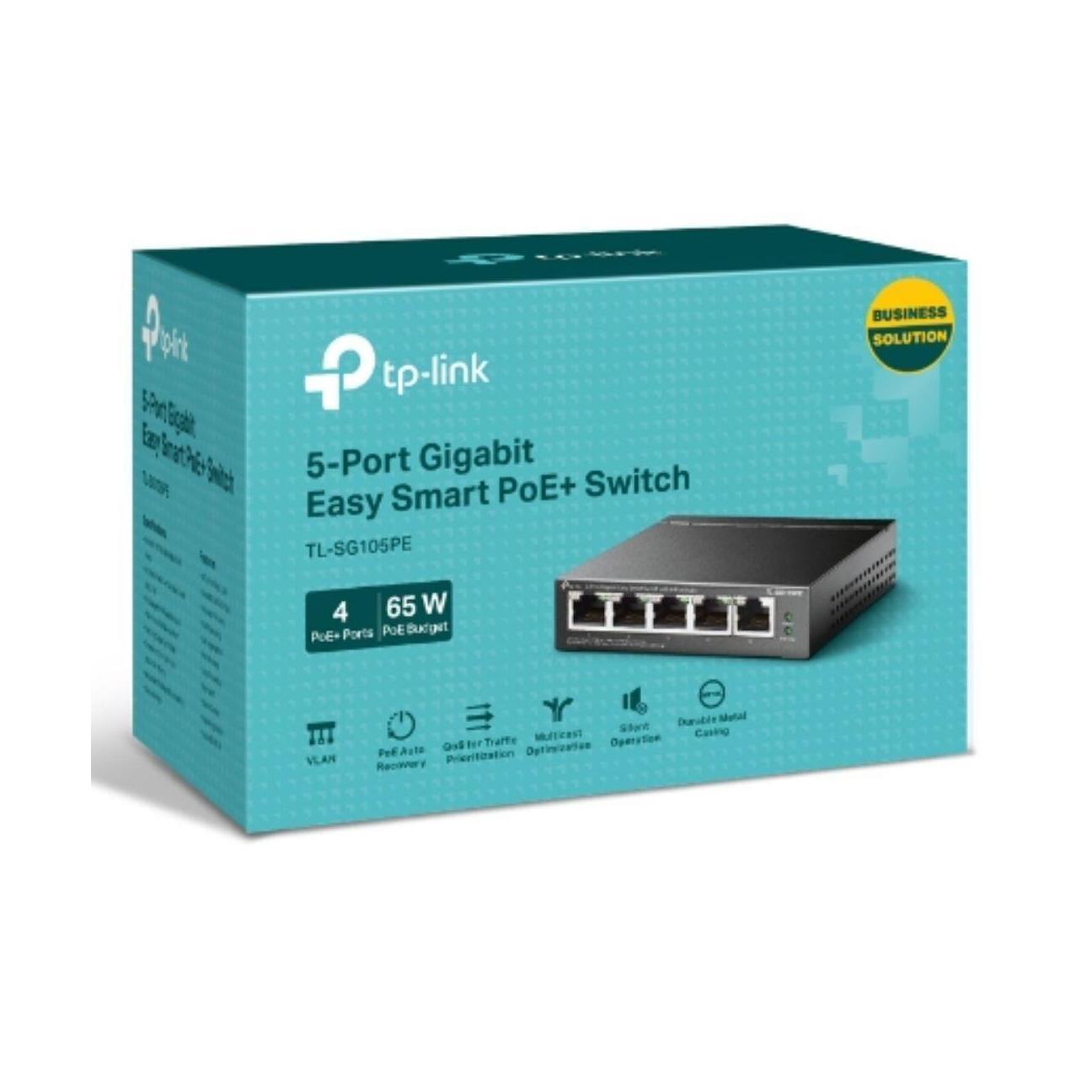

TP-Link TL-SG105PE 5-Port Gigabit PoE+ Smart Switch 4x PoE+Ports 65W Total Power

The TP-Link TL-SG105PE is a versatile and efficient 5-port Gigabit Smart Switch designed for easy network management in small to medium-sized businesses or home offices. It features four PoE+ ports capable of delivering up to 30W per port, allowing data and power to be transferred over a single cable.

Display

N/A

Performance

• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.44 Mpps
• MAC Address Table: 2 K
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame Support: 16 KB

Connectivity

• Five 10/100/1000Mbps RJ45 Ports
• PoE Ports (RJ45): Port 1-Port 4, IEEE 802.3af/at compliant
• Network Media: 10BASE-T, 100BASE-TX, 1000BASE-T

PoE Features

• PoE Power Budget: 65 W
• PoE Auto Recovery
• Extend Mode

Software Features

• Quality of Service (QoS): Port-Based/802.1p/DSCP priority, 4 priority queues, Rate Limit, Storm Control
• L2 Features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention
• VLAN Support: Up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN Management via Web-based GUI

HARDWARE FEATURES

• Fan Quantity: Fanless
• Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)
• Max Heat Dissipation: 256.30 BTU/h with 65 W PD connected
• Max Power Consumption: 75.16 W at 220V/50Hz with 65 W PD connected

The TP-Link TL-SG105PE offers a user-friendly web-based interface and Easy Smart Configuration Utility for simplified setup, making it an ideal choice for those seeking reliable network management without the complexity.
