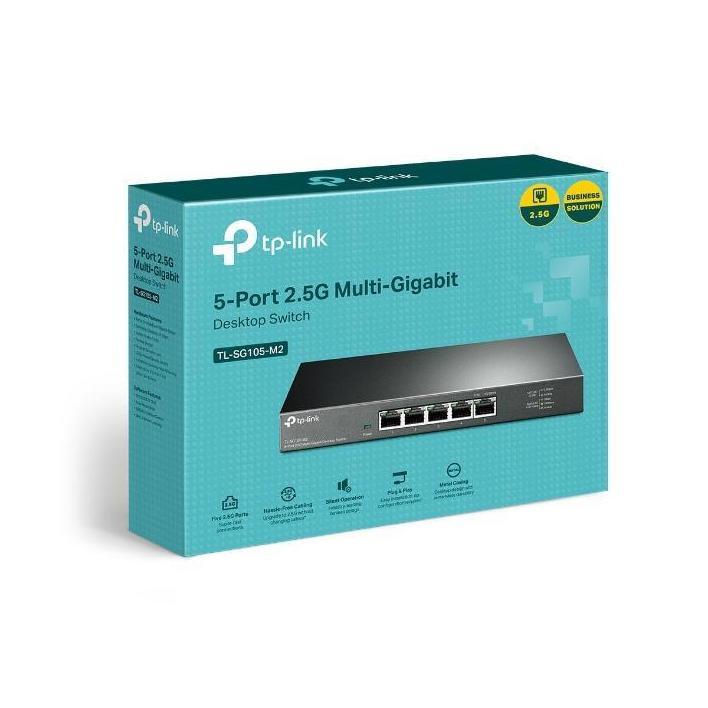

TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch Up To 25G Switching Capacity
Available in stock (62)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 314 mm |
|---|---|
| Width | 242 mm |
| Height | 70 mm |
Product Details
Product Details
The TP-Link TL-SG105-M2 is a compact and efficient 5-port desktop switch designed to handle Multi-Gig bandwidth with ease. It supports up to 25 Gbps of switching capacity through its five 2.5 Gbps ports, ensuring high-speed connections for devices such as NAS units, servers, gaming computers, and WiFi 6 access points.
Display
- No display screen
Performance
- Switching Capacity: 25 Gbps
- Packet Forwarding Rate: 18.6 Mpps
Storage
N/A
Connectivity
- 5× 2.5Gbps Ports (Auto-Negotiation, Auto-MDI/MDIX)
- Fanless design for silent operation
- Durable metal casing with desktop/wall-mounting options
Software Features
- 802.3X Flow Control
- 802.1p/DSCP QoS
Certifications and Standards
- CE, FCC, RoHS
Dimensions
8.2×4.9×1.0 in (209×126×26 mm)
Power Consumption
- Max Power: 12.11 W
- Max Heat Dissipation: 41.32 BTU/h
- External Power Supply: 12 VDC / 1 A
Environmental Specifications
- Operating Temperature: 0–40 °C (32–104 °F)
- Storage Temperature: -40–70 °C (-40–158 °F)
- Operating Humidity: 10–90% RH non-condensing
Package Contents
- TP-Link TL-SG105-M2 5-Port 2.5G Multi-Gigabit Desktop Switch
- Power Adapter
- Installation Guide
- Rubber Feet
Warranty
Warranty
Manufacturer warranty 60 Months
