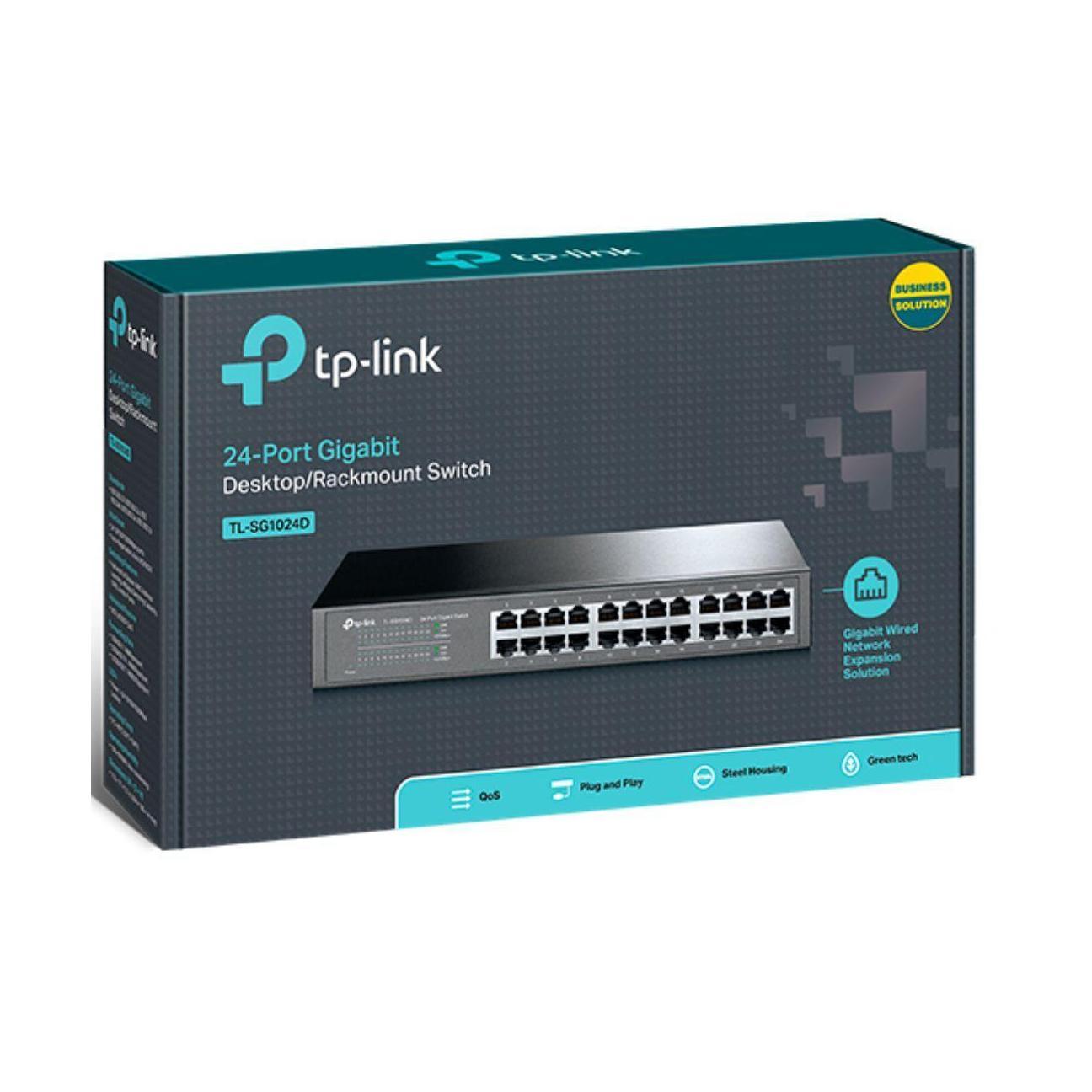

TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Unmanaged Switch 48Gbps Switching Capacity

The TP-Link TL-SG1024D is a versatile unmanaged switch designed for desktop or rack mounting with 24-port Gigabit connectivity. It supports IEEE standards including 802.3i, 802.3u, 802.3ab and 802.3x, ensuring reliable performance in various network environments.

Performance

• Switching Capacity: 48Gbps
• Packet Forwarding Rate: 35.7Mpps
• MAC Address Table: 8K entries
• Jumbo Frame Support: Up to 10KB
• Transfer Method: Store-and-Forward

Connectivity

• 24 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media: UTP category 3, 4, 5 cable for 10BASE-T; UTP category 5, 5e or above cable for 100BASE-TX and 1000BASE-T

Energy Efficiency

• Fanless design reduces noise and maintenance needs
• Green technology features to save power consumption

Physical Specifications

• Dimensions: 11.6 x 7.1 x 1.7 inches (294 x 180 x 44 mm)
• Rack Mountable
• No physical security lock included
• Power Supply: 100-240VAC, 50/60Hz
• Maximum Power Consumption: 13.1W (220V/50Hz)
• Max Heat Dissipation: 46.44BTU/h
