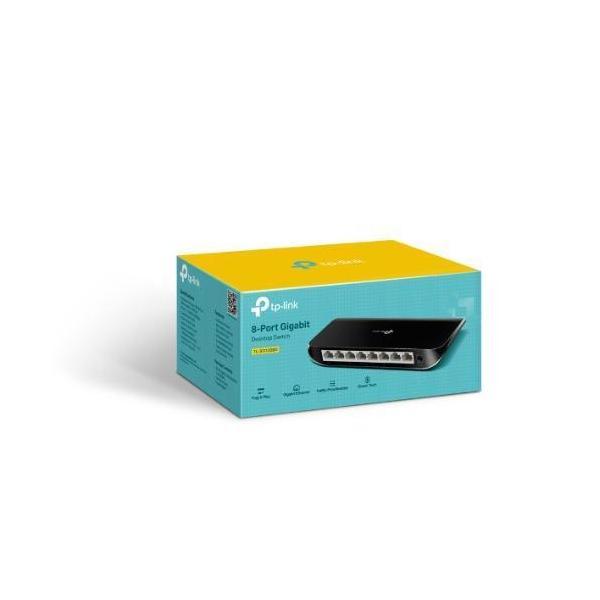

TP-Link TL-SG1008D 8-Port Gigabit Unmanaged Switch Fanless

The TP-Link TL-SG1008D is an 8-port gigabit unmanaged switch designed for desktop or wall-mounting use. It features a fanless design and supports auto-negotiation/auto MDI/MDIX, making it easy to set up without any configuration required.

Display

N/A

Performance

• Switching Capacity: 16 Gbps
• Jumbo Frame Support: 15 KB
• IEEE 802.3x Flow Control for reliable data transfer
• Green Ethernet technology saves up to 80% power

Storage

N/A

Connectivity

• 8 Gigabit Auto-Negotiation RJ45 ports
• FCC, CE, RoHS certified

Hardware Features

• Fanless design for quiet operation
• No physical security lock included
• External power supply: 9VDC/0.6A power adapter
• Dimensions: 7.1 * 3.5 * 1.0 in (180 * 90 * 25.5 mm)
• Max Power Consumption: 4.63W at 220V/50Hz
• Max Heat Dissipation: 15.80 BTU/h

Software Features

• MAC Address Table Capacity: 4K entries
• Supports QoS (802.1p/DSCP) for prioritised data transfer

Environment and Warranty

• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Limited 3-Year Warranty
