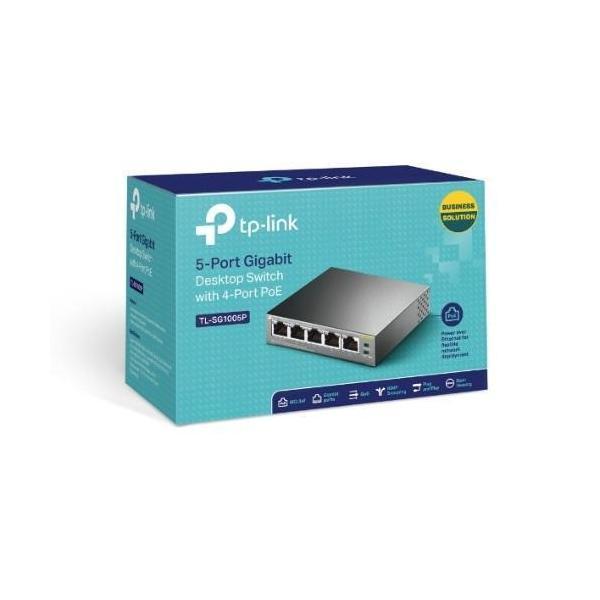

TP-Link TL-SG1005P 5-Port Gigabit PoE Desktop Switch 56W Power Supply

The TP-Link TL-SG1005P is a versatile 5-port gigabit desktop switch designed for both home and office use. It features four PoE (Power over Ethernet) ports that can supply power to IEEE 802.3af/at compliant devices, making it ideal for expanding network coverage without additional wiring.

Performance

• PoE Power Supply: Up to 15.4W per port, up to 56W total
• Packet Forwarding Rate: 7.44 Mpps
• Switching Capacity: 10 Gbps

Connectivity

• 5× 10/100/1000Mbps RJ45 Ports (4 PoE)
• AUTO Negotiation and AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

Software Features

• IEEE 802.3af/at compliant PDs support
• MAC Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS for smooth latency-sensitive traffic
• IGMP Snooping

Physical Specifications

• Fan Quantity: Fanless
• External Power Supply: 53.5 VDC / 1.31 A
• Jumbo Frame: 16 KB
• MAC Address Table: 2K
• Dimensions (W x D x H): 99.8×98×25 mm (3.9×3.9×1.0 in)
• Max Power Consumption: 4.29 W (no PD connected), 74.24 W (with 65 W PD connected)
• Max Heat Dissipation: 14.63 BTU/h (no PD connected), 253.16 BTU/h (with 65 W PD connected)

The TP-Link TL-SG1005P requires no configuration or installation, making it easy to set up and use.
