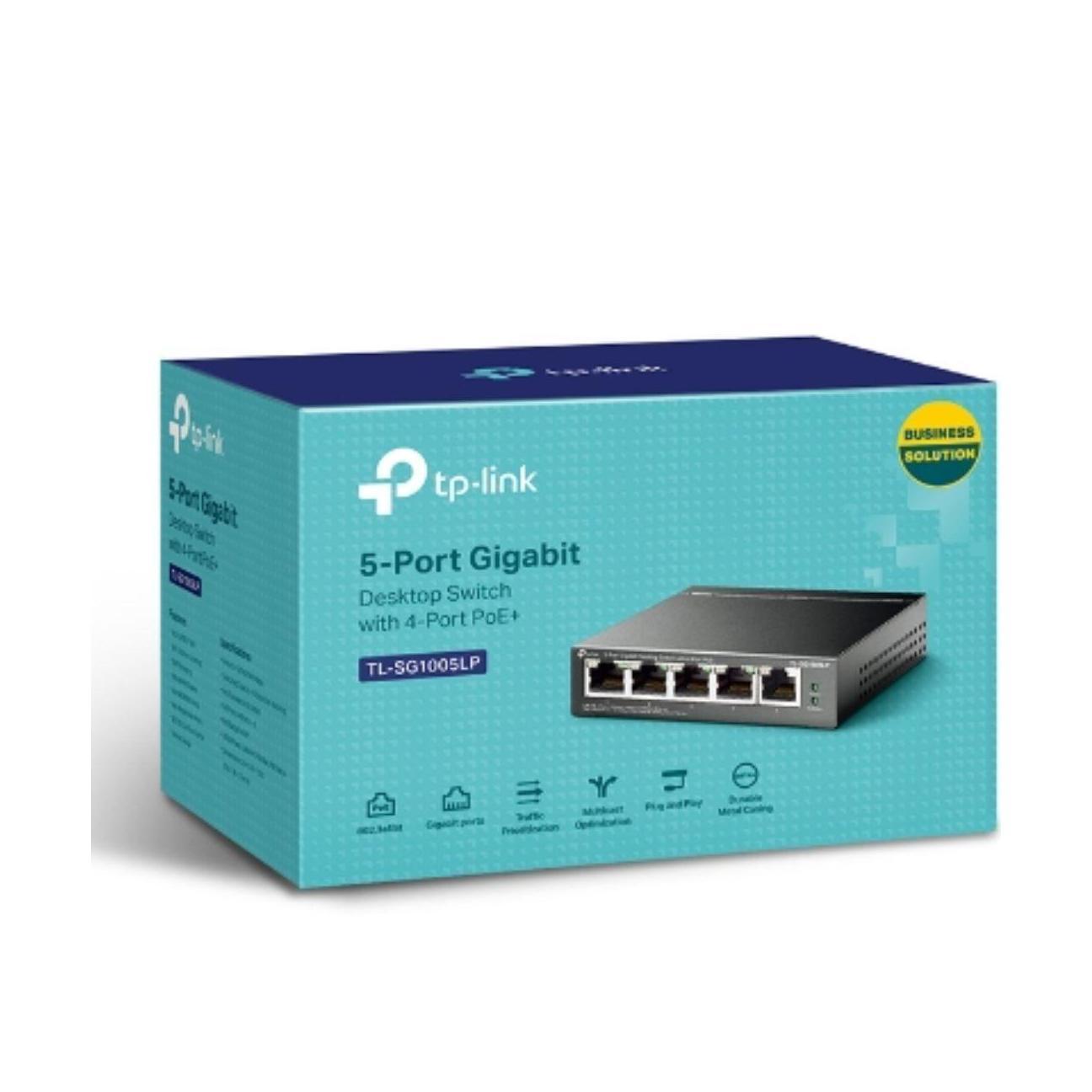

TP-Link TL-SG1005LP 5-Port Gigabit PoE+ Desktop Switch 4x PoE+ Ports 40W Total Power

The TP-Link TL-SG1005LP is a compact and efficient 5-port Gigabit desktop switch designed for both data transfer and power delivery through PoE+. This switch includes four PoE+ ports capable of delivering up to 30W per port or a total of 40W, making it suitable for powering IEEE 802.3af/at compliant devices.

Performance

• Packet Forwarding Rate: 7.44 Mpps
• Switching Capacity: 10 Gbps
• Jumbo Frame Support: 16 KB

Connectivity

• 5× 10/100/1000 Mbps RJ45 Ports
• PoE Ports (Ports 1–4)
• Fanless Design

Power and Heat Management

• External Power Supply: 53.5 VDC / 0.81 A
• Max Power Consumption:
  • No PD connected: 4.12 W
  • With 40W PD connected: 47.5 W
• Max Heat Dissipation:
  • No PD connected: 14.05 BTU/h
  • With 40W PD connected: 161.98 BTU/h

Software Features

• IEEE 802.3af/at Compliant PDs Support
• MAC Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS for Smooth Latency-Sensitive Traffic
• IGMP Snooping

Certification and Environment

• FCC, CE, RoHS Certification
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

The TP-Link TL-SG1005LP is plug-and-play, requiring no configuration or installation, making it ideal for small office and home network setups.
