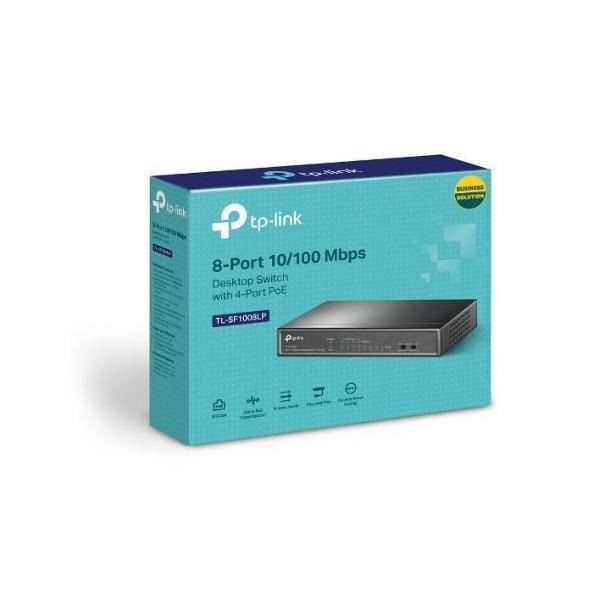

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch 4x PoE 41W Total Power

The TP-Link TL-SF1008LP is an 8-port 10/100Mbps desktop switch with a built-in PoE (Power over Ethernet) feature for convenient data and power transmission.

Ports

• 8 × 10/100 Mbps RJ45 ports
• 4 × PoE ports supporting IEEE 802.3af compliant PDs

PoE Features

• Up to 250m data and power transmitting range under Extend Mode
• Prioritises ports 1–2 for sensitive applications in Priority Mode
• Total PoE power up to 41 W across all PoE ports

Performance

• Backbound bandwidth: 1.6 Gbps
• MAC address table capacity: 2K entries

Connectivity and Compatibility

• AUTO Negotiation and AUTO MDI/MDIX
• Supports 10BASE-T and 100BASE-TX standards
• FCC, CE, RoHS certified

Physical Specifications

• Dimensions: 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
• No fan required for cooling
• Included lock for physical security
• Fully compatible with IEEE 802.3af compliant PDs

Power Supply and Consumption

• External power adapter: 53.5 V DC / 0.81 A
• No PoE connected: 2.2 W max, 7.5 BTU/h heat dissipation
• PoE connected (41 W PD): 47.1 W max, 160.61 BTU/h heat dissipation

Environmental Specifications

• Operating temperature: 0–40 ℃ (32–104 ℉)
• Storage temperature: -40–70 ℃ (-40–158 ℉)
• Relative humidity: 10–90% RH non-condensing

Package Contents

• TL-SF1008LP switch
• External power adapter
• Installation guide
