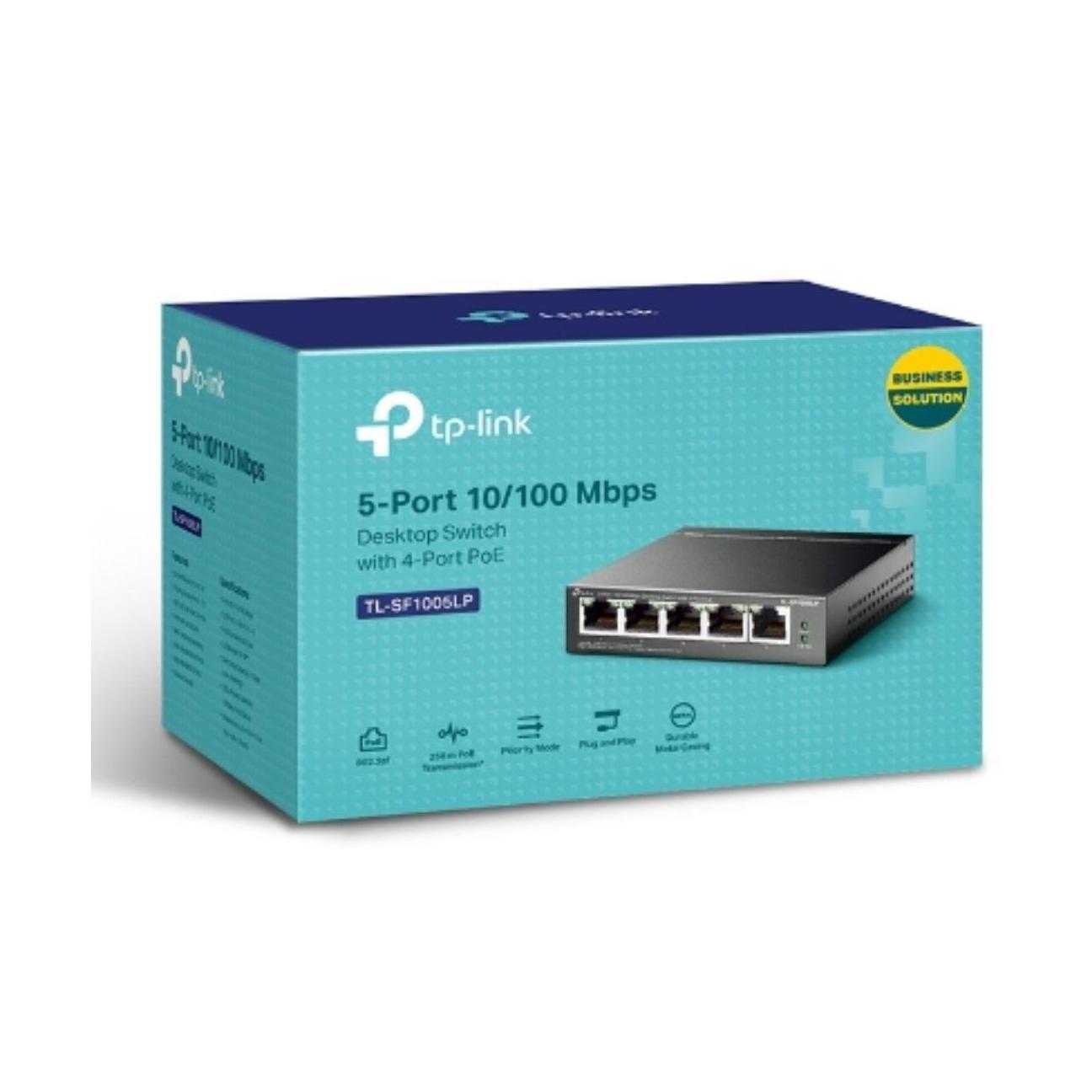

TP-Link TL-SF1005LP 5-Port 10/100Mbps PoE Desktop Switch 41W

The TP-Link TL-SF1005LP is a compact and versatile desktop switch designed for small offices or home networks requiring both data transfer and power delivery capabilities. This 5-port switch supports up to 4 PoE ports, making it ideal for devices such as IP cameras, VoIP phones, and wireless access points.

Performance

• PoE Power: Up to 41 W total across all PoE ports
• Data Transfer Speed: 10/100 Mbps
• Packet Forwarding Rate: 0.744 Mpps
• Switching Capacity: 1 Gbps

Connectivity

• 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support PoE)
• AUTO Negotiation and AUTO MDI/MDIX
• Supports IEEE 802.3af/at compliant PDs

PoE Features

• Extend Mode: Up to 250 m data and power transmitting range
• Priority Mode: Ensures high priority for ports 1–2

Physical Specifications

• Fanless Design
• Dimensions (W x D x H): 3.9×3.9×1.0 in (100×98×25 mm)
• Weight: Not specified
• External Power Supply: External Power Adapter (Output: 53.5 V DC / 0.81 A)
• MAC Address Table: 2K entries
• Jumbo Frame Support: Up to 2 KB

Power Consumption and Heat Dissipation

• No PD connected: Max Power Consumption 1.9 W, Heat Dissipation 6.48 BTU/h
• With 41 W PD connected: Max Power Consumption 47 W, Heat Dissipation 160.27 BTU/h

Certifications and Environmental Requirements

• Certification: FCC, CE, RoHS
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH

Included Items

• TL-SF1005LP Switch
• Power Adapter
• Installation Guide
