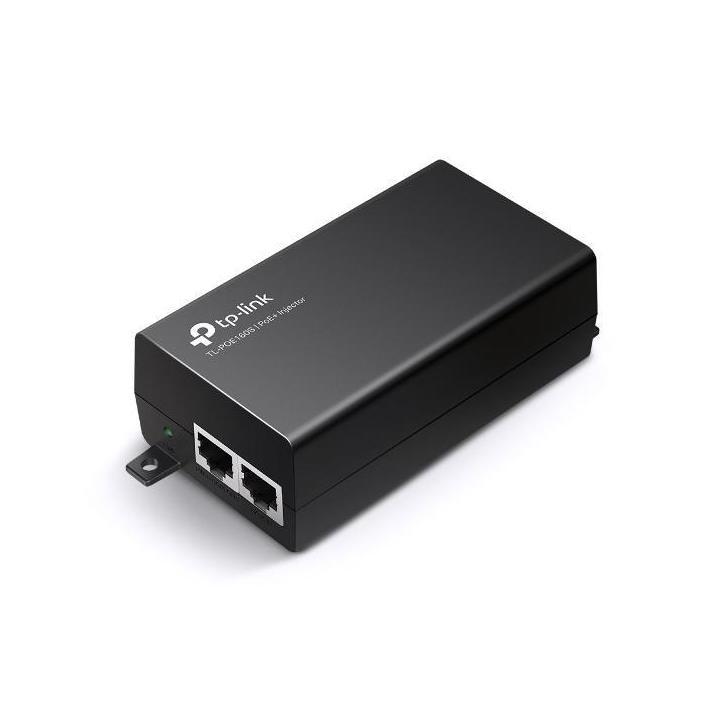

TP-Link TL-POE160S Omada PoE+ Injector 2 Gigabit Ports 802.3af/at
Available in stock (548)
Couldn't load pickup availability
Specifications
Specifications
Power
| Power Source | AC-powered |
|---|
Case & Build
| Material | Plastic |
|---|
Dimensions
| Length | 228 mm |
|---|---|
| Width | 172 mm |
| Height | 82 mm |
Other
| Colour | Black |
|---|
Product Details
Product Details
The TP-Link TL-POE160S Omada PoE+ Injector is designed to simplify network installations by providing both power and data over a single Ethernet cable. This device supports IEEE802.3af/at standards and supplies up to 30 watts of power, ensuring compatibility with various devices.
Performance
- 2 Gigabit ports for faster transmission
- Auto-sensing algorithm determines necessary power requirements
- Plug-and-play installation without configuration needed
Connectivity
- 1 10/100/1000Mbps RJ45 data-in port
- 1 10/100/1000Mbps RJ45 power+data-out port
Power Supply
- Input: 100-240 V, 50/60 Hz
- Output: Auto-determine the necessary power requirements (max. 30 W)
Environmental Specifications
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10% to 90%RH non-condensing
- Storage Humidity: 5% to 90%RH non-condensing
Certifications
- FCC, CE, RoHS
The TP-Link TL-POE160S supports both wall-mounting and desktop installation scenarios for flexible deployment options.
Downloads
Downloads
- PoE(America_4 Languages)_ Installation Guide · Quick start guide, PDF
- PoE(Middle-East-Africa_2 Languages)_ Installation Guide · Quick start guide, PDF
- Installation Guide · Quick start guide, PDF
- POE160S_V3.6_Datasheet | Omada Network Support · User manual, PDF
