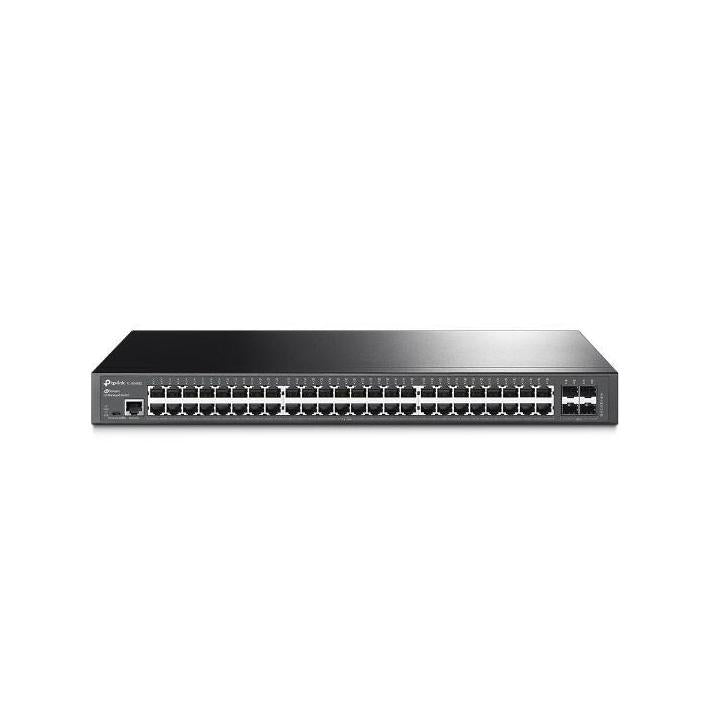

TP-Link SG3452 Omada 48-Port Gigabit L2+ Managed Switch 4 SFP Slots

The TP-Link TL-SG3452 JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots is designed for high-speed network connectivity and robust management features.

Display

• Fanless design, ensuring quiet operation

Performance

• Switching Capacity: 104 Gbps
• Packet Forwarding Rate: 77.4 Mpps
• Jumbo Frame Support: Up to 9 KB

Storage

No storage specifications provided.

Connectivity

• 48× Gigabit RJ45 Ports
• 4× Gigabit SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port

Software Features

• Integrated into Omada SDN for Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
• Centralised Management via cloud access and the Omada app.
• Static Routing for efficient internal traffic routing.
• Robust Security Strategies including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication.
• L2/L3/L4 QoS and IGMP snooping for optimised voice and video applications.

Quality of Service (QoS)

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling: SP, WRR, SP+WRR
• Bandwidth Control: Port/Flow based rating limiting
• Action for Flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark

HARDWARE FEATURES

• Dimensions: 17.3×8.7×1.7 in (440×220×44 mm)
• Rack Mountable
• Power Supply: 100-240 V AC~50/60 Hz
• Max Power Consumption: 32.8 W (220 V / 50 Hz)
• Max Heat Dissipation: 111.91 BTU/h (220 V / 50 Hz)

Management Capabilities

• Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image for powerful management.
