TP-Link

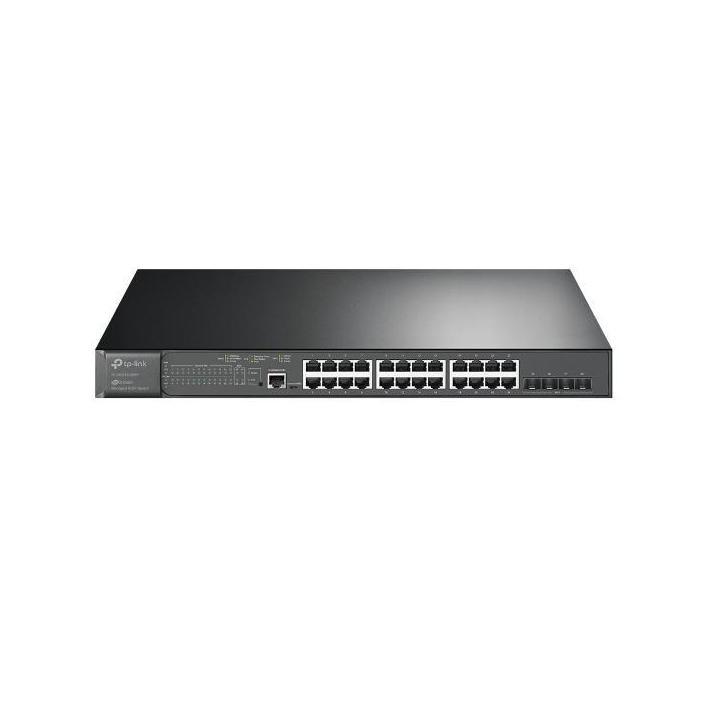

TP-Link SG3428XMP Omada 24-Port PoE+ Gigabit L2+ Managed Switch 4x 10GE SFP+
Available in stock (12)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 108 mm |
|---|---|
| Width | 532 mm |
| Height | 470 mm |
Product Details
Product Details
The TP-Link SG3428XMP Omada is a high-performance managed switch designed for businesses requiring robust networking solutions. It features 24 Gigabit Ethernet ports with PoE+ support and four 10G SFP+ slots, providing versatile connectivity options.
Display
No display screen available; management via web interface or console port.
Performance
- Switching Capacity: 128 Gbps
- Packet Forwarding Rate: 95.23 Mpps
- Jumbo Frame Support: Up to 9 KB
Storage
No storage details provided.
Connectivity
- Ethernet Ports: 24× 10/100/1000 Mbps RJ45 ports with PoE+
- SFP+ Slots: 4× 10G SFP+
- Console Port: 1× RJ45 and 1× Micro-USB
Power Supply
- Voltage Range: 100-240 V AC~50/60 Hz
- Max Power Consumption: 34.4 W (no PD device connected), 465.8 W (with 384 W PD device)
- PoE Budget: 384 W across all PoE+ ports
Management and Security
- Integrated Omada SDN: Zero-Touch Provisioning (ZTP), Cloud Management, Intelligent Monitoring
- Centralised Management: Web interface, CLI via Console Port/Telnet/SSH, SNMP, RMON, Dual Image
- Security Features: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication
- Quality of Service (QoS): L2/L3/L4 QoS, IGMP snooping, 8 priority queues, Bandwidth Control, Rate Limiting, Traffic Mirroring and Redirect
Dimensions and Mounting
- Dimensions: 440 × 330 × 44 mm (W x D x H)
- Fan Quantity: 2 fans
- Mounting: Rack mountable
Environmental
- Max Heat Dissipation: 117.38 BTU/h (no PD device connected), 1589.31 BTU/h (with 384 W PD device)
Warranty
Warranty
Manufacturer warranty 60 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
