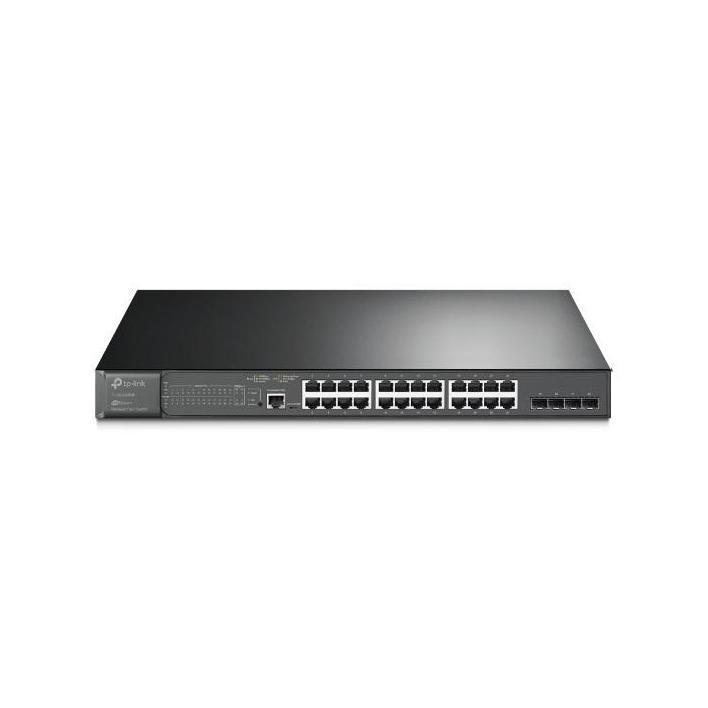

TP-Link SG3428MP Omada 28-Port PoE+ Gigabit L2+ Managed Switch 4 SFP Slots

The TP-Link TL-SG3428MP JetStream 28-Port Gigabit L2 Managed Switch is a powerful networking solution designed for businesses requiring robust PoE+ capabilities and advanced management features. This switch offers high-speed connectivity with full gigabit ports and SFP slots, making it ideal for various network configurations.

Display

N/A

Performance

• Switching Capacity: 56 Gbps
• Packets Forwarding Rate: 41.66 Mpps
• MAC Address Table: 8K
• Jumbo Frame Support: 9 KB

Connectivity

• 24× 10/100/1000Mbps RJ45 Ports
• 4× Gigabit SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port

PoE+ Support

• Total PoE Budget: 384 W
• PoE Ports (RJ45): 24, up to 30W per port

Management Features

The TL-SG3428MP integrates seamlessly into the Omada SDN environment with Zero-Touch Provisioning and centralised cloud management. It supports standalone management via web interface, CLI (Telnet, SSH), SNMP, RMON, and Dual Image for comprehensive control.

Security

• IP-MAC-Port Binding
• ACL
• Port Security
• DoS Defend
• Storm Control
• DHCP Snooping
• 802.1X, Radius Authentication

Optimisation Features

• L2/L3/L4 QoS
• IGMP snooping
• Static Routing

HARDWARE FEATURES

• Fans: 2
• Power Supply: 100-240 V AC~50/60 Hz
• Rack Mountable
• Dimensions (W x D x H): 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
• Max Power Consumption:
  • No PoE connected: 31.0 W (110 V/60 Hz)
  • PoE connected: 463.8 W (110 V/60 Hz)
• Max Heat Dissipation:
  • No PoE connected: 105.78 BTU/h (110 V/60 Hz)
  • PoE connected: 1582.49 BTU/h (110 V/60 Hz)
