TP-Link

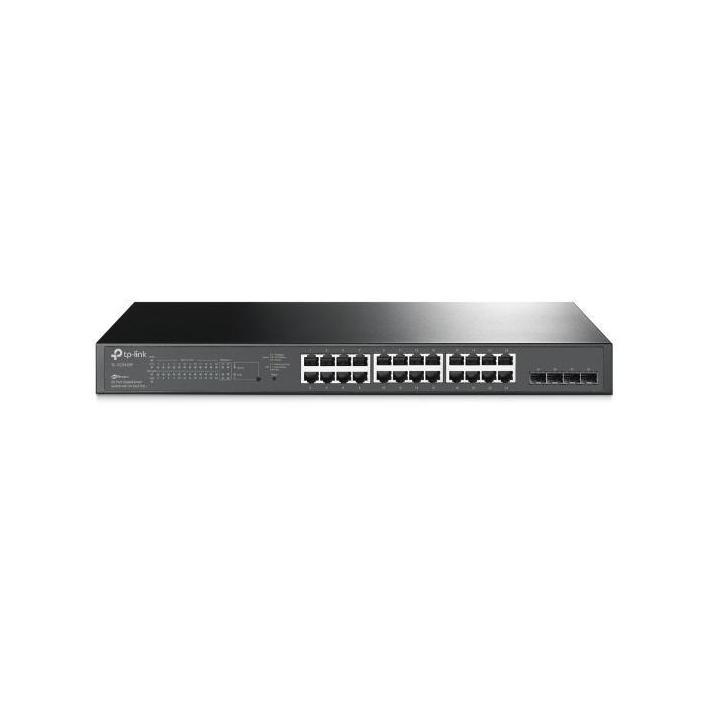

TP-Link SG2428P JetStream 28-Port Gigabit PoE+ Smart Switch Omada SDN Rack Mountable
Available in stock (99)
Couldn't load pickup availability
Specifications
Specifications
Power
| Power Source | AC-powered |
|---|
Dimensions
| Length | 534 mm |
|---|---|
| Width | 344 mm |
| Height | 102 mm |
Other
| Colour | Black |
|---|
Description
Description
The TP-Link TL-SG2428P JetStream is a 28-port Gigabit PoE+ Smart Switch designed for efficient network management and high-speed connectivity. It supports Omada SDN for seamless integration with cloud-based management solutions.
Display
N/A
Performance
- Bandwidth/Backplane: 56 Gbps
- Packet Forwarding Rate: 41.7 Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 9 KB
Connectivity
-
Ports:
- 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- 4× Gigabit SFP Slots
-
PoE+:
- 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*
Management and Security
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, Intelligent Monitoring
- Centralised Management: Cloud access and Omada app for ultra convenience and easy management
- Security Features: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication
- QoS Support: L2/L3/L4 QoS and IGMP snooping for optimised voice and video applications
- IPv6 Support: Dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbour discovery
HARDWARE FEATURES
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
-
Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
- 1000BASE-X: MMF, SMF
- Fan Quantity: 2
- Dimensions: 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
- Mounting: Rack Mountable
-
Max Power Consumption:
- 32.1 W (110 V/ 60 Hz with no PD connected)
- 308.6 W (110 V/ 60 Hz with 250 W PD connected)
-
Max Heat Dissipation:
- 109.53 BTU/h (with no PD connected)
- 1052.94 BTU/h (with 250 W PD connected)
*PoE+ power budget is shared among all ports.
Manuals & Downloads (2)
Manuals & Downloads (2)
- Installation Guide · Quick start guide, PDF
- Datasheet · PDF
Warranty & Returns
Warranty & Returns
Manufacturer warranty 60 Months
This product is covered by the manufacturer's warranty, and you can return it within 30 days of purchase. For claims, faults or returns, see our warranty & returns policy.
