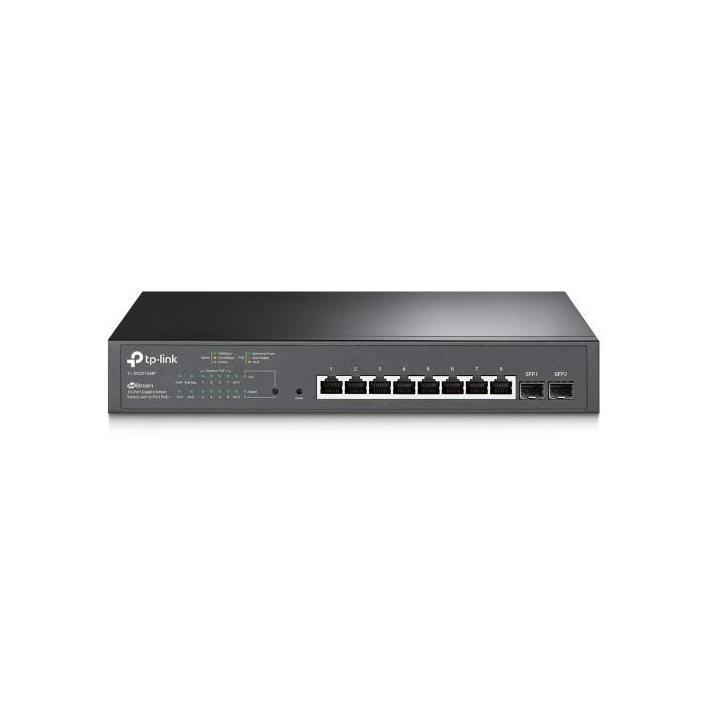

TP-Link SG2210MP 10-Port Gigabit PoE+ Smart Switch Omada SDN

The TP-Link TL-SG2210MP JetStream is a versatile 10-port gigabit smart switch designed for efficient network management and high-speed data transfer. It features eight PoE+ ports compliant with IEEE 802.3at/af standards, providing a total power budget of 150 W.

Performance

• Switching Capacity: 20 Gbps
• Packet Forwarding Rate: 14.9 Mpps
• Jumbo Frame Support: 9 KB

Display and Connectivity

• 8× 10/100/1000 Mbps RJ45 Ports (all supporting PoE+)
• 2× 100/1000 Mbps SFP Slots

Storage and Memory

• MAC Address Table: 8K entries
• Packet Buffer Memory: 4.1 Mbit

Security Features

• IP-MAC-Port Binding, ACL, Port Security
• DoS Defend, Storm Control, DHCP Snooping
• 802.1X and Radius Authentication
• L2/L3/L4 QoS and IGMP snooping

Management Features

• Omada SDN platform integration for centralised cloud management
• WEB/CLI managed modes, SNMP, RMON support

Power Supply and Environmental

• PoE+ Ports: 8 ports with a total power budget of 150 W
• Fan Quantity: 1 fan
• Physical Security Lock: Yes
• Dimensions (W x D x H): 294 x 180 x 44 mm
• Rackmount/Desktop Mounting Support
• Max Power Consumption: 173.9 W with PD connected
• Max Heat Dissipation: 539.35 BTU/h with PD connected

Standards and Protocols

• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
