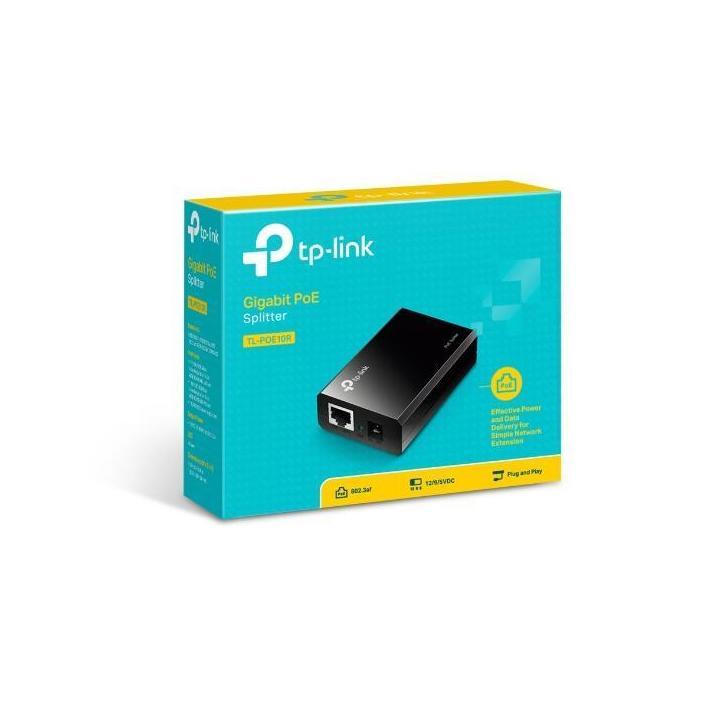

TP-Link POE10R Omada 2xGbE PoE Splitter Gigabit RJ45 Port Adapter
Available in stock (47)
Couldn't load pickup availability
Specifications
Specifications
Power
| Power Source | DC-powered, AC-powered |
|---|
Case & Build
| Material | Plastic |
|---|
Dimensions
| Length | 200 mm |
|---|---|
| Width | 168 mm |
| Height | 64 mm |
Other
| Colour | Black |
|---|
Product Details
Product Details
The TP-Link TL-POE10R is a PoE splitter that complies with IEEE 802.3af standards and supports gigabit speeds. It delivers power up to 100 meters via optional 12V DC, 9V DC or 5V DC power supplies.
Performance
- Gigabit speed support
HARDWARE FEATURES
- 2 x 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Compatible with IEEE 802.3af compliant PSEs
- Delivers power up to 100 meters
- Optional 12V DC, 9V DC or 5V DC power supply
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
- EIA/TIA-568 100Ω STP (Max 100m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100m)
- EIA/TIA-568 100Ω STP (Max 100m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply
- 12VDC 1A, 9VDC 1A, 5VDC 2A
Dimensions
3.2*2.1*0.9 in. (80.8*54*24 mm)
Downloads
Downloads
- PoE(America_4 Languages)_ Installation Guide · Quick start guide, PDF
- PoE(Middle-East-Africa_2 Languages)_ Installation Guide · Quick start guide, PDF
- Installation Guide · Quick start guide, PDF
- Product Brochure · Datasheet, PDF
- TP-LINK TL-POE10R PoE Splitter Datasheet · User manual, PDF
Warranty
Warranty
Manufacturer warranty 36 Months
