TP-Link

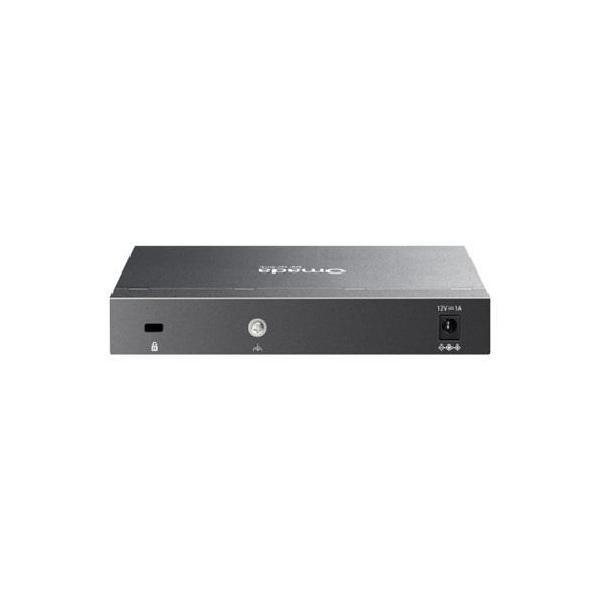

TP-Link Omada ES206X-M2 5x 2.5GbE 10G SFP+ Easy Managed Switch
Regular price
$149.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (18)
Couldn't load pickup availability
Specifications
Specifications
Power
| Power Source | DC-powered |
|---|
Dimensions
| Length | 192 mm |
|---|---|
| Width | 140 mm |
| Height | 90 mm |
Other
| Colour | Black |
|---|
Product Details
Product Details
The TP-Link Omada ES206X-M2 is a managed network switch designed for easy installation and reliable performance. It features five 2.5 Gbps RJ45 ports and one 10 Gbps SFP+ slot, offering versatile connectivity options.
Display
N/A
Performance
- Fanless design for quiet operation
- Supports desktop or wall mount installation
- Physical security lock included
Storage
N/A
Connectivity
- 5× 2.5 Gbps RJ45 ports
- 1× 10 Gbps SFP+ slot
- Auto-negotiation and Auto MDI/MDIX capabilities
Software Features
- Quality of Service (QoS) with port-based, 802.1p, and DSCP support
- Eight priority queues for traffic management
- Storm control with multiple modes for broadcast/multicast/unknown unicast
- L2 features including static link aggregation, loop prevention, flow control, and mirroring
- VLAN support with port-based VLANs and 802.1Q tag VLAN (up to 32 groups)
- IGMP snooping for multicast management
Power Supply
- DC power adapter (Output: 12 VDC / 1 A)
Dimensions
- 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)
Safety and Warranty
- Surge protection up to ±6kV for Ethernet ports
- Five-year warranty period
Warranty
Warranty
Manufacturer warranty 60 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
