TP-Link

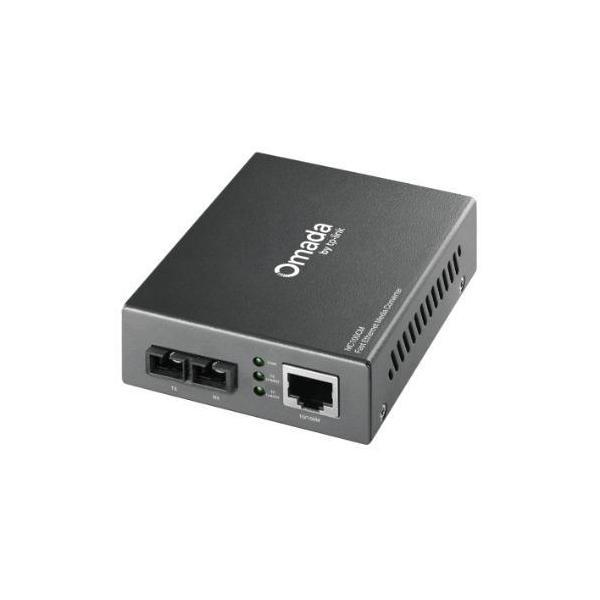

TP-Link MC100CM 10/100Mbps SC-Type 2KM Multi-Mode Media Converter
Available in stock (31)
Couldn't load pickup availability
Specifications
Specifications
Power
| Power Source | AC-powered |
|---|
Case & Build
| Material | Plastic |
|---|
Dimensions
| Length | 208 mm |
|---|---|
| Width | 166 mm |
| Height | 64 mm |
Other
| Colour | Black |
|---|
Description
Description
The TP-Link MC100CM is a media converter designed to convert between 100BASE-FX fiber and 100Base-TX copper media. It complies with IEEE 802.3u, 10/100Base-TX, and 100Base-FX standards, making it suitable for use with multi-mode fibre cable using the SC-Type connector.
Performance
- Supports full wire speed forwarding rate
- Operates at 1310nm wavelength on both transmitting and receiving data
- Extends fiber distance up to 2km
Ports
- 1 x 100M SC/UPC port
- 1 x 100M RJ45 port (Auto MDI/MDIX)
Features
- Half-Duplex / Full-Duplex transfer mode for FX port
- Link Fault Passthrough and Far End Fault detection to minimise link failure downtime
- Supports Auto negotiation of duplex mode on TX port
- Front panel status LEDs (PWR, FDX/Col, Link/Act, SPD)
- Can be used as a stand-alone device or with TP-LINK’s 19” system chassis
Dimensions and Power Supply
- Dimensions: 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
- Power Supply: External power supply
Manuals & Downloads (3)
Manuals & Downloads (3)
- Product Brochure · Datasheet, PDF
- User manual · PDF
- User manual · PDF
Warranty & Returns
Warranty & Returns
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty, and you can return it within 30 days of purchase. For claims, faults or returns, see our warranty & returns policy.
