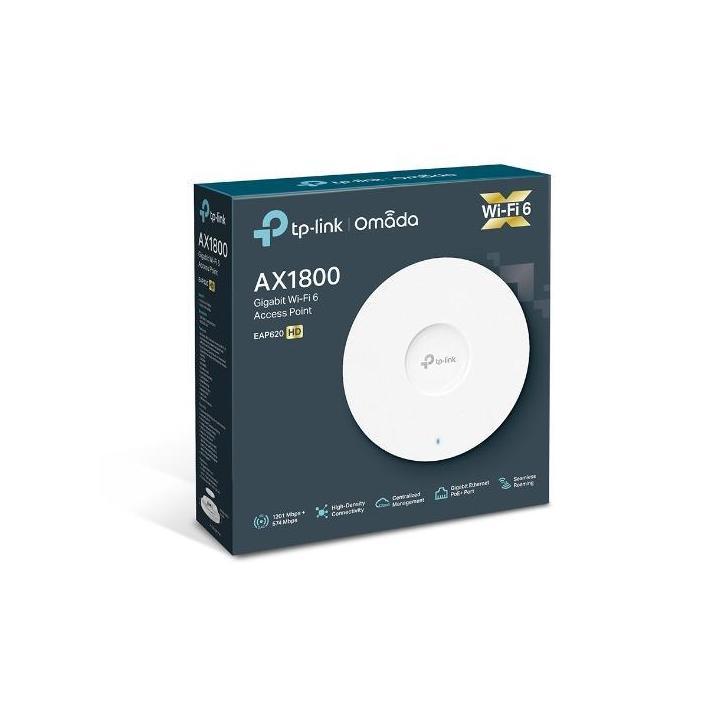

TP-Link EAP620 HD Omada AX1800 Dual Band Ceiling Mount Access Point 1201Mbps

The TP-Link EAP620 HD Omada AX1800 is a high-performance ceiling mount access point designed for seamless connectivity and easy management in enterprise environments.

Performance

• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz, totaling 1775 Mbps Wi-Fi speeds.
• High-Density Connectivity: Supports up to four times the capacity for simultaneous device connections compared to previous models.

Connectivity

• Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
• Power Supply: 802.3at PoE or 12 V DC
• Antenna Type: Internal Omni: 2× 4 dBi for 2.4 GHz, 2× 5 dBi for 5 GHz
• PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.

Management & Security

• Integrated into Omada SDN: Zero-Touch Provisioning, Centralised Cloud Management, Intelligent Monitoring
• Centralised Management: Accessible via cloud or Omada app for ultra convenience and easy management
• Secure Guest Network with multiple authentication options (SMS/Facebook Wi-Fi/Voucher) and wireless security technologies

Wireless Features

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 1201 Mbps, 2.4 GHz: Up to 574 Mbps
• Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control, QoS(WMM), MU-MIMO, Seamless Roaming, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Seamless Roaming: Ensures uninterrupted video streams and voice calls as users move between locations.

Physical Specifications

• Dimensions (W x D x H): 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
• Mounting: Ceiling/Wall Mounting (Kits included)
• Power Consumption: EU: 12 W, US: 13.5 W
