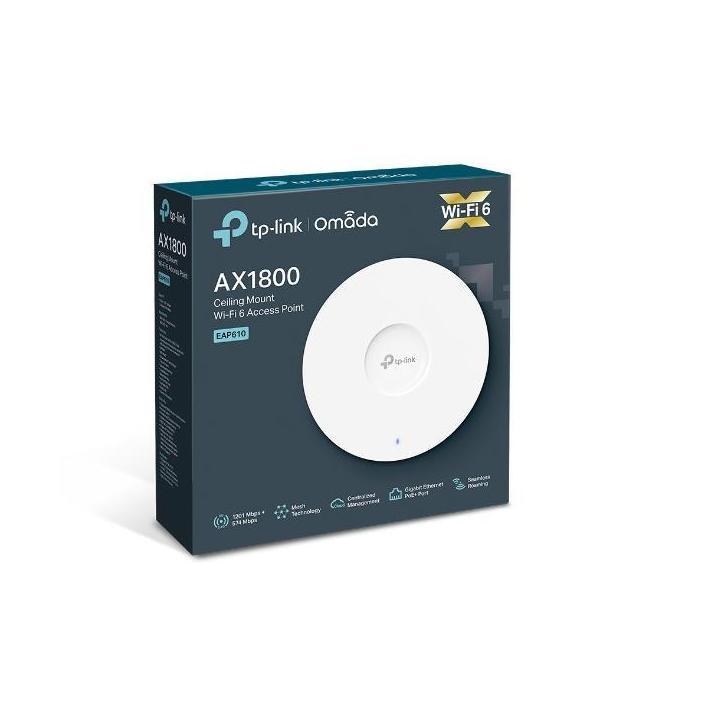

TP-Link EAP610 Omada AX1800 Dual Band Ceiling Mount Access Point 1201Mbps 5GHz

The TP-Link EAP610 Omada AX1800 is a high-performance dual-band ceiling mount access point designed for seamless network management and superior connectivity.

Display

• No display screen

Performance

• Ultra-Fast WiFi 6 speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz, totalling 1775 Mbps Wi-Fi speeds.
• High-Efficiency WiFi 6 supports more connected devices with faster speeds.

Connectivity

• Centralised Cloud Management: Manage the network locally or remotely via web UI or Omada app.
• Seamless Roaming ensures uninterrupted video streams and voice calls as users move between locations.
• Omada Mesh for extended range and flexible deployment.

HARDWARE FEATURES

• 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
• Reset button
• PoE+ Powered: Supports both Power over Ethernet (IEEE 802.3at) and DC power supply for flexible installations.
• Dimensions: 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
• Antenna Type: Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
• Ceiling/Wall Mounting included

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequencies: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 1201 Mbps, 2.4 GHz: Up to 574 Mbps

MULTI-SITE MANAGEMENT AND SECURITY

• Omada App Support: Yes
• Centralized Management via Omada Hardware Controller (OC300 and OC200) or Omada Software Controller
• Email Alerts, LED ON/OFF Control, Management MAC Access Control, SNMP v1, v2c, v3, Local/Remote Syslog, SSH, Web-based Management (HTTP/HTTPS), L3 Management, Multi-site Management, Management VLAN
