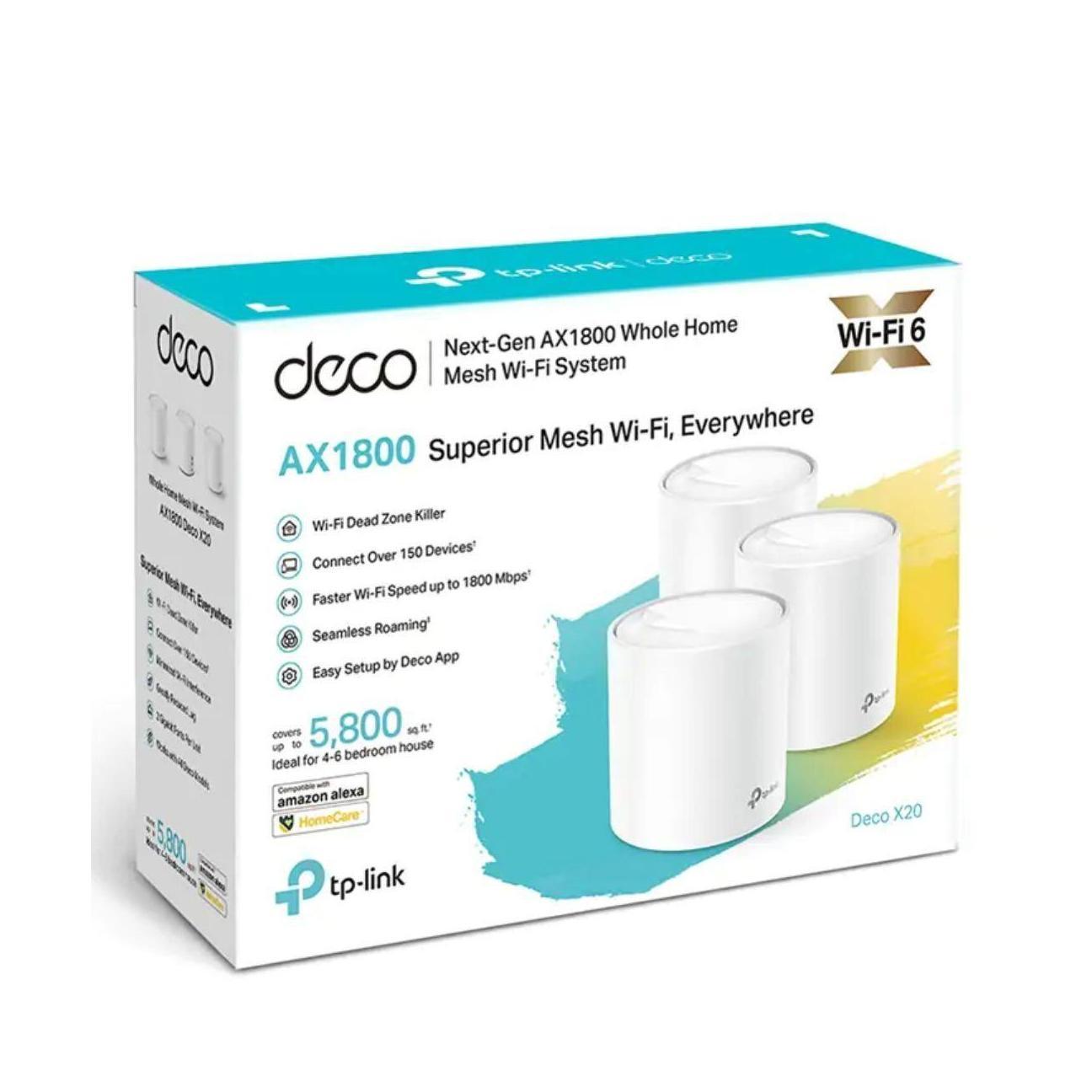

TP-Link Deco X20 AX1800 Mesh WiFi System 3-Pack 530 sqm Coverage

The TP-Link Deco X20 is a whole-home mesh Wi-Fi system designed to provide seamless coverage and reliable connectivity across your home. This 3-pack set delivers up to AX1800 speeds with 1,202 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.

Performance

• Faster connections: Wi-Fi 6 technology for enhanced speed
• Connect more devices: OFDMA and MU-MIMO technology support simultaneous transmission to multiple devices
• Ultra-low latency: Reduced latency for responsive gaming and video chatting

Coverage

• Seamless whole-home coverage with a clearer and stronger Wi-Fi signal
• One unified network that automatically selects the best connection as you move around your home

Security

• Total security: WPA3 encryption and TP-Link HomeCare provide personalized features including Parental Controls, Antivirus, and Quality of Service (QoS)

Setup

The Deco app guides you through the setup process step-by-step.

Hardware

• Ethernet ports: 2 x 10/100/1000 Mbps RJ45 ports
• Button: 1 RESET button on the underside
• Antennas: 4 internal omni-directional antennas
• Flash memory: 1 Gbit
• SDRAM: 4 Gbit
• Power consumption (with power adapter): 13.5W max
• Dimensions: 110 × 110 × 114 mm
• Power adapter input/output: 100-240V~50-60Hz 0.6A / 12V 1.5A

Wireless Standards

• IEEE 802.11a/n/ac/ax (5GHz), IEEE 802.11b/g/n/ax (2.4GHz)
• MESH protocol: 802.11k/v/r
• Frequency bands: 2.4 GHz and 5 GHz
• Signal rate: 575 Mbps on 2.4GHz, 1200 Mbps on 5GHz, 1024QAM on both bands
• Transmit power: FCC <30 dBm (both bands), CE <20 dBm (2.4 GHz) and <23 dBm (5 GHz)
• Wireless security: WPA/WPA-PSK2/WPA3 encryptions

Software Features

• Working mode: Router, Access Point
• WAN type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
• DHCP server support
• Quality of Service (QoS): WMM
• SPI Firewall security
• Supports IPv4 and IPv6 protocols
