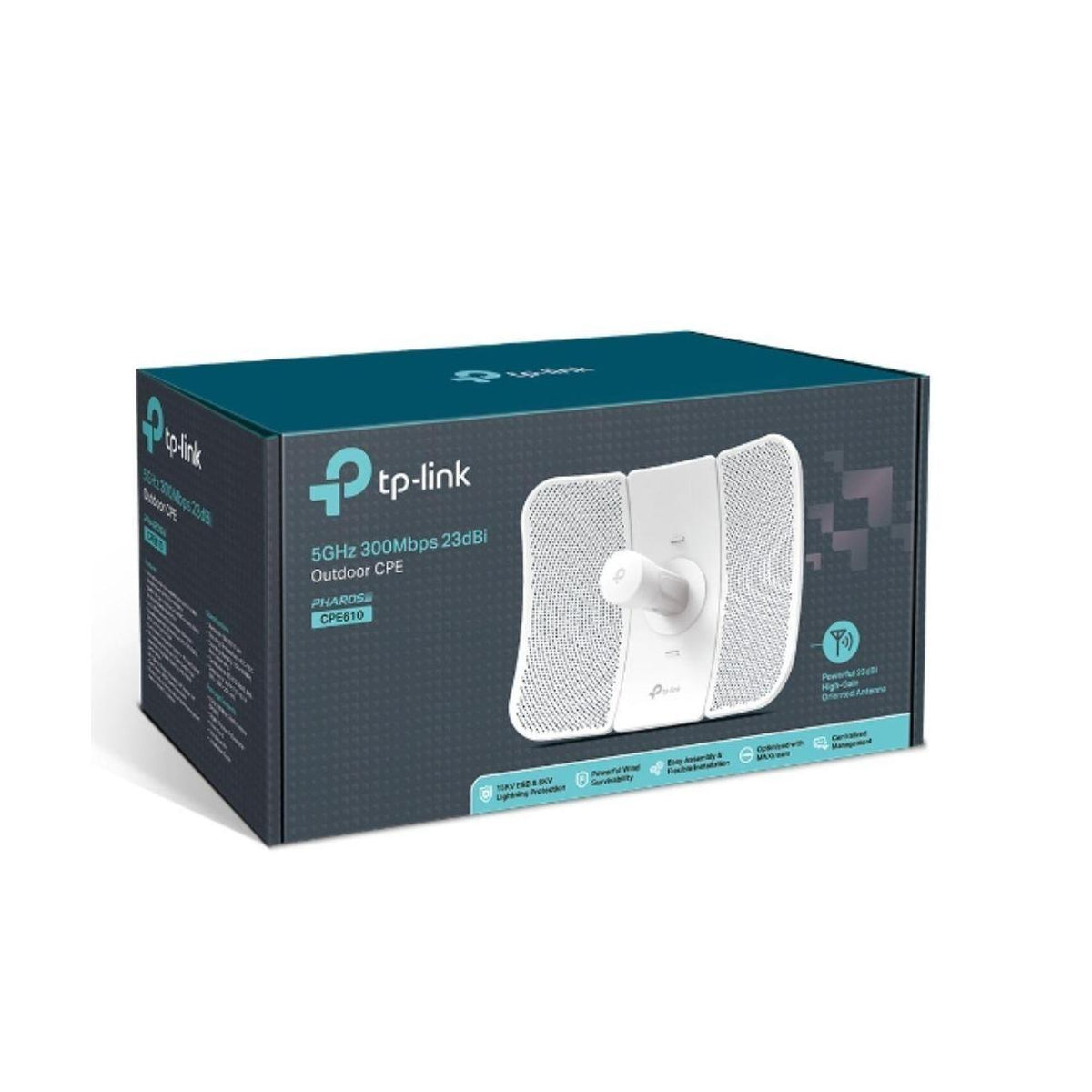

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE MIMO Antenna Weatherproof

The TP-Link CPE610 is a high-performance outdoor client bridge/repeater designed for long-distance wireless connectivity. Featuring a 23dBi directional antenna with excellent beam directivity and noise cancellation, it supports up to 300Mbps data rates on the 5GHz band.

Display

N/A

Performance

• Processor: Qualcomm 560MHz CPU, MIPS 74Kc
• Memory: 64MB DDR2 RAM, 8MB Flash
• Wireless Standards: IEEE 802.11a/n
• Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
• Wireless Speeds: Up to 300Mbps (40MHz, Dynamic), up to 144.4Mbps (20MHz, Dynamic), up to 72.2Mbps (10MHz, Dynamic), up to 36.1Mbps (5MHz, Dynamic)
• Frequency: 5.15~5.85GHz
• Transmit Power: Max. 29dBm/790mW (Adjustable power by 1dBm)

Storage

N/A

Connectivity

• Interface: 1 x 10/100Mbps Shielded Ethernet Port (LAN/POE), 1 Reset Button
• Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC
• Operating Modes: AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)

Durability and Design

• Dimensions: 360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount)
• Antenna Gain: 23dBi
• Antenna Beamwidth: 9°(Azimuth), 7°(Elevation)
• Durable IP65 weatherproof enclosure
• Protection: 15KV ESD Protection, 6KV Lightning Protection

Innovative Features

• Innovative snap-lock parts for fast assembly and a sturdy structural design
• TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
• Pharos Control provides free centralized management system
