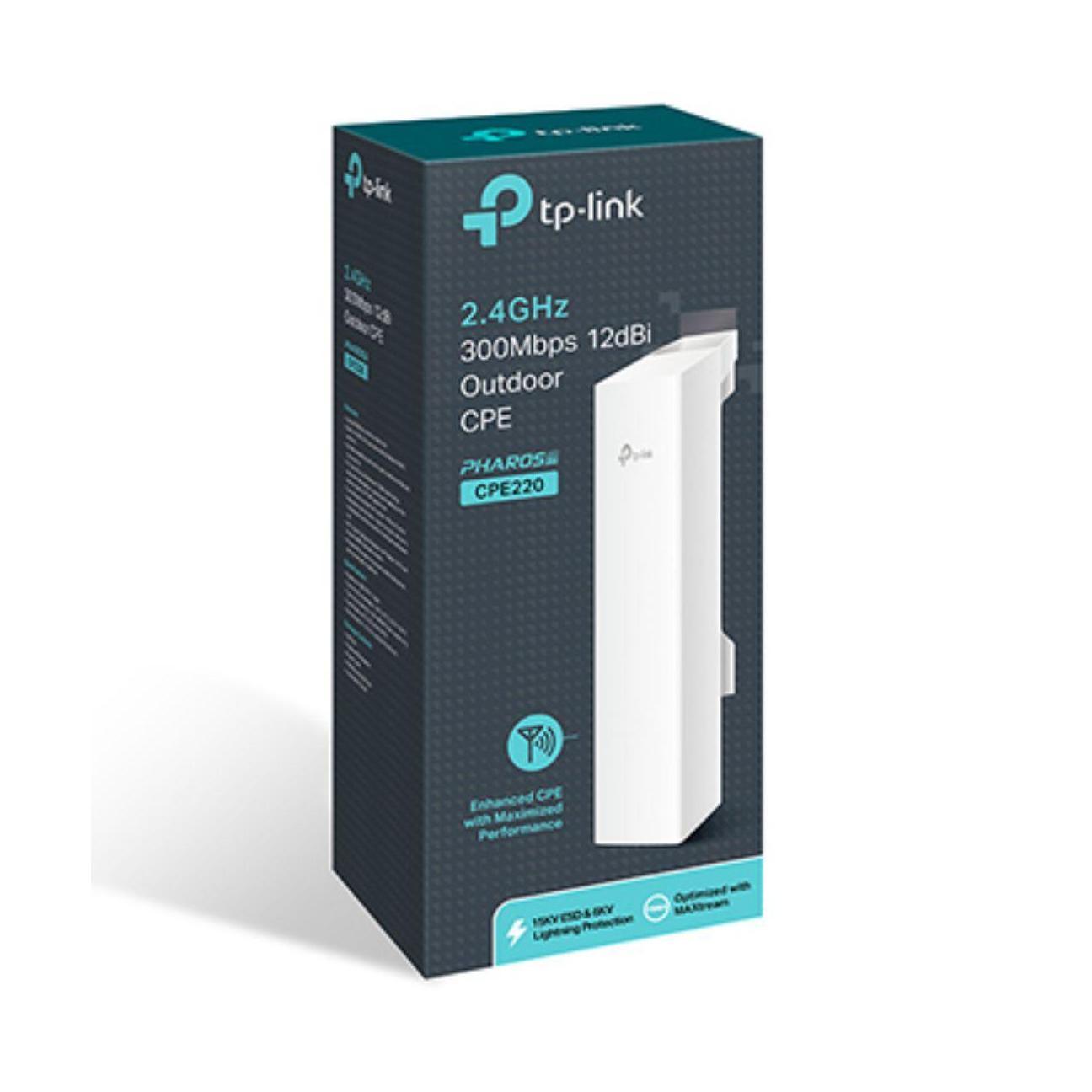

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE AP Router 13km+ Range

The TP-Link CPE220 is a high-performance outdoor CPE (Customer Premises Equipment) access point designed for long-range wireless transmission up to 13km. It supports IEEE 802.11b/g/n standards and can achieve speeds of up to 300Mbps in optimal conditions.

Performance

• Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc
• Memory: 64MB DDR2 RAM, 8MB Flash
• Wireless Speeds: Up to 300Mbps (40MHz), up to 144.4Mbps (20MHz), up to 72.2Mbps (10MHz)
• Adjustable transmission power from 0 to 30dBm/1000mw
• TP-LINK Pharos MAXtream TDMA technology for improved performance in throughput, capacity and latency

Connectivity

• 2x2 dual-polarized directional MIMO antenna with 12dBi gain
• Beam Width: 60° (H-Plane) / 30° (E-Plane)
• 1 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in)
• 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)

Power and Deployment

• Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
• Voltage range: 16-27VDC
• Power Consumption: 10.8 Watts Max (higher power draw with Passive PoE deployment depending on cable length)
• Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows remote device reset

Protection and Enclosure

• 15KV ESD Protection, 6KV Lightning Protection
• Outdoor ASA stabilized plastic material enclosure
• IPX5 waterproof certification

The TP-Link CPE220 supports various operation modes including AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) and can be managed centrally via Pharos Control.
