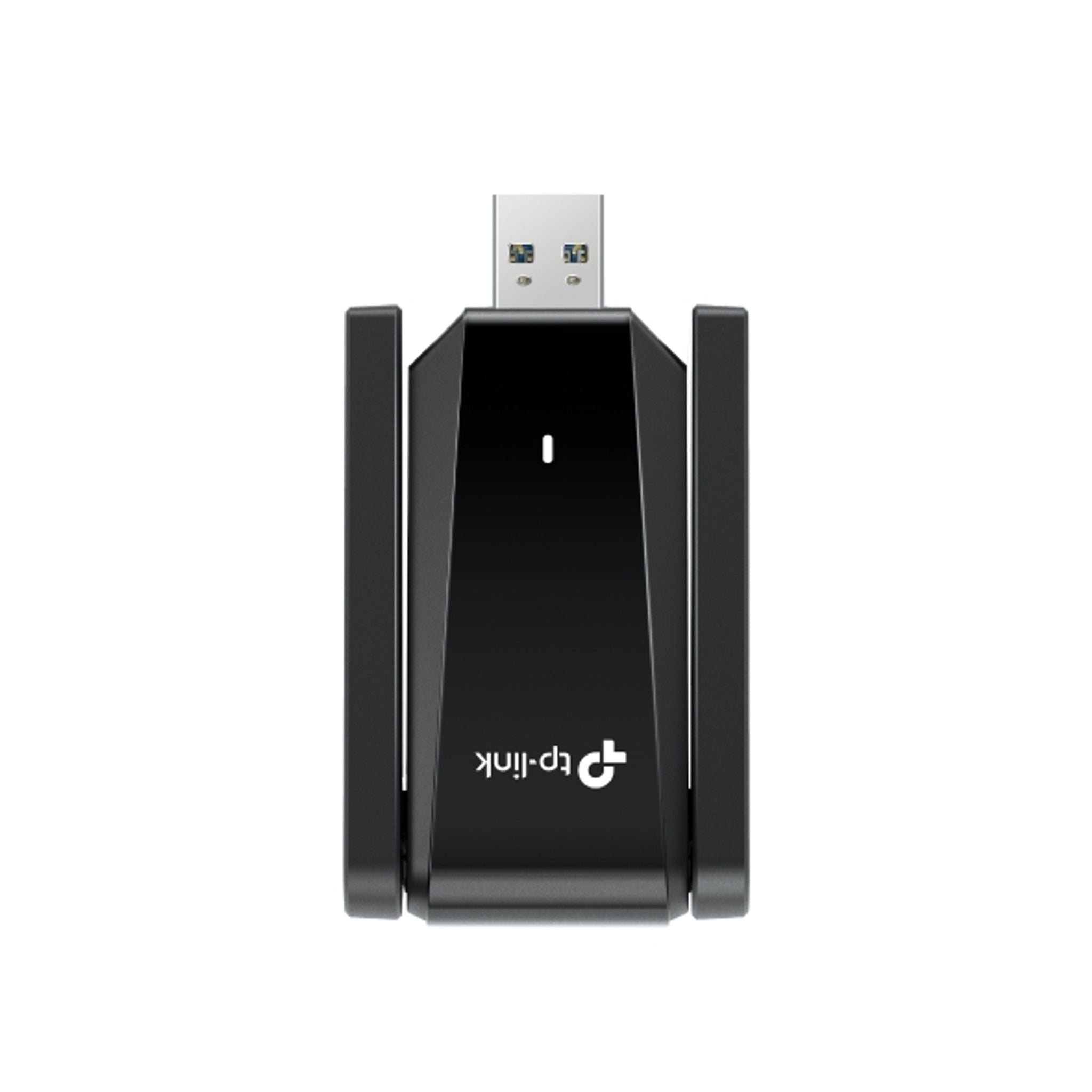

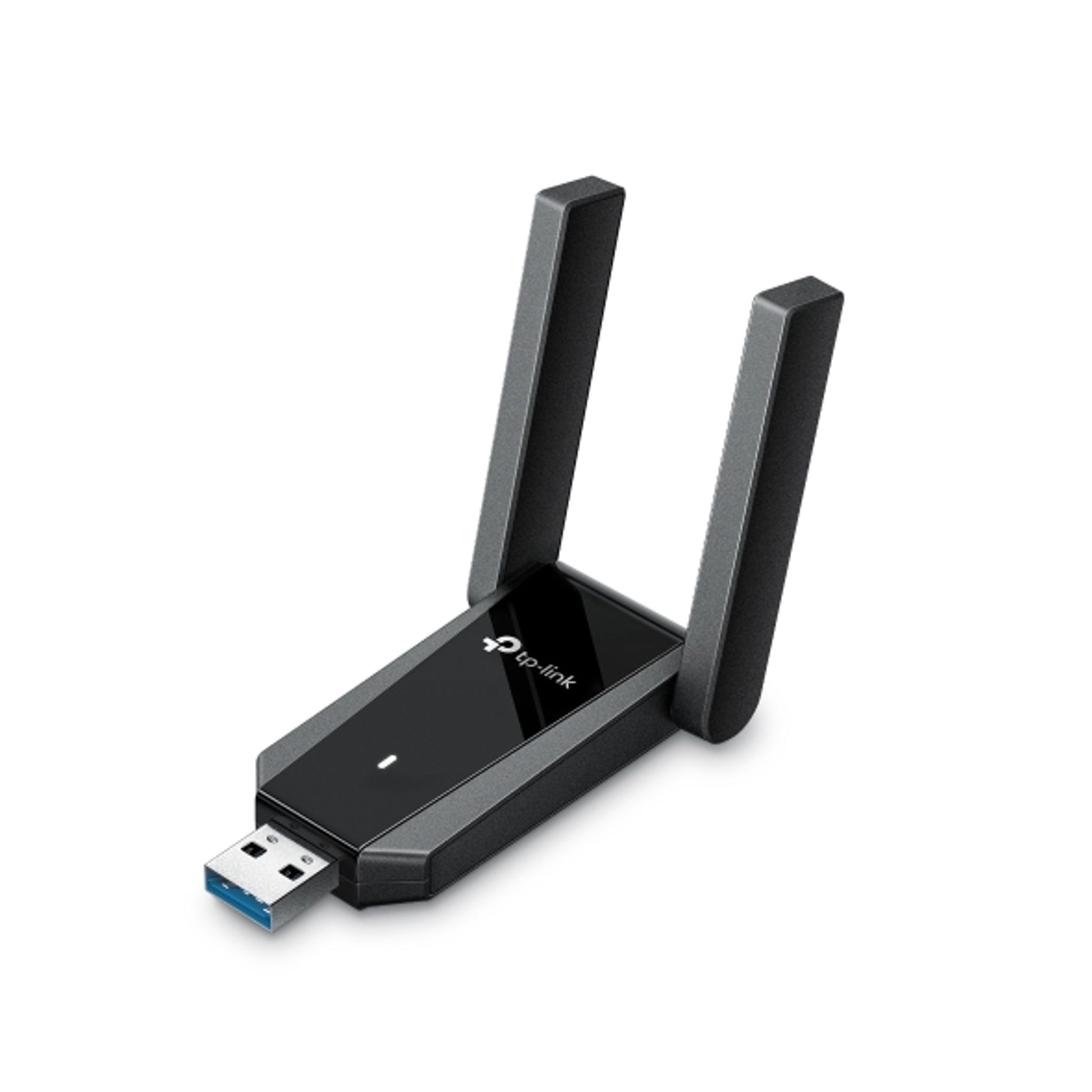

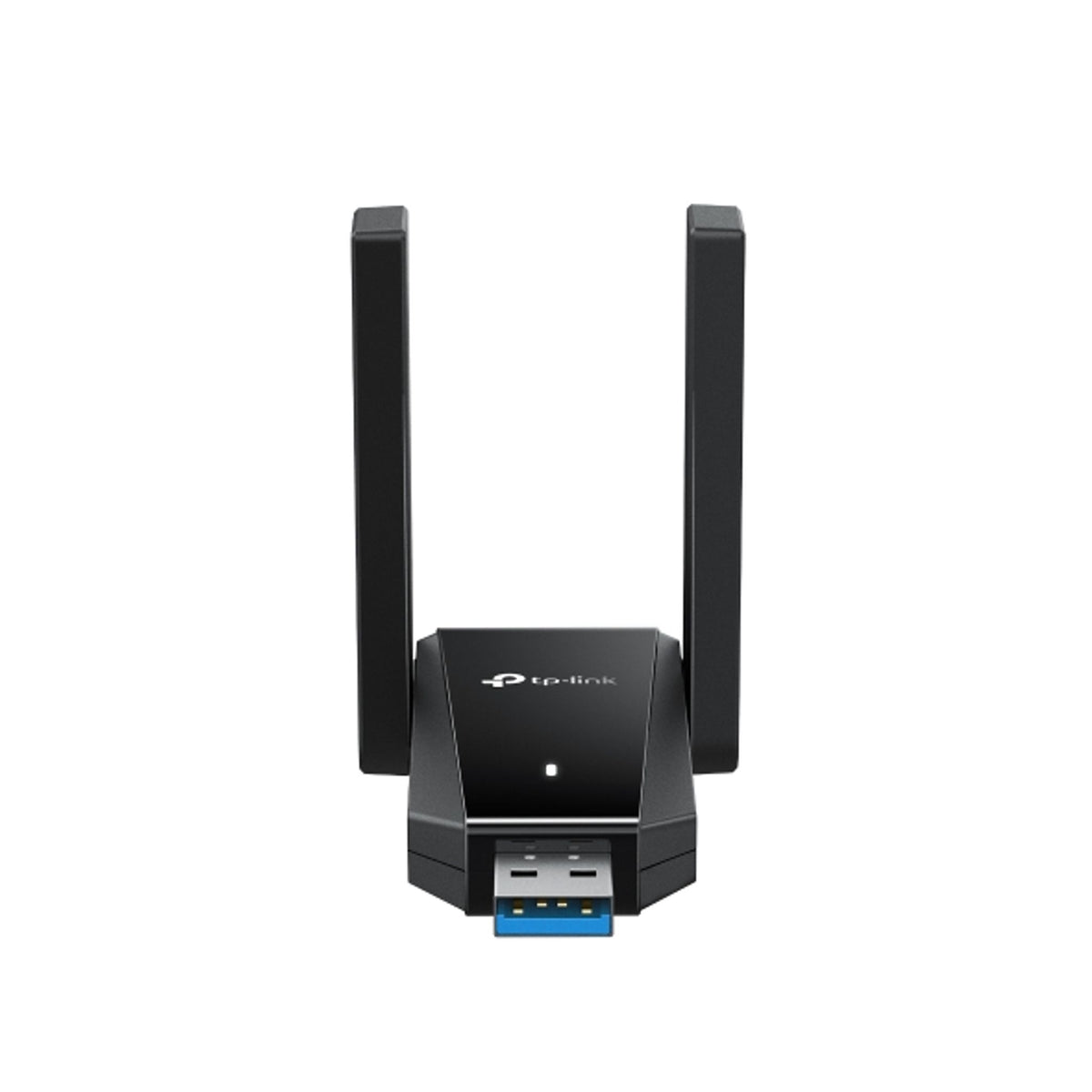

TP-Link Archer T5U Plus AC1300 Dual Antenna Wireless USB Adapter

The TP-Link Archer T5U Plus is a high-performance dual antenna wireless USB adapter designed to provide reliable and fast internet connectivity for your devices. It supports AC1300 speeds with IEEE 802.11b/g/n/ac standards across both 2.4 GHz and 5 GHz bands, offering up to 867 Mbps on the 5 GHz band.

Hardware Features

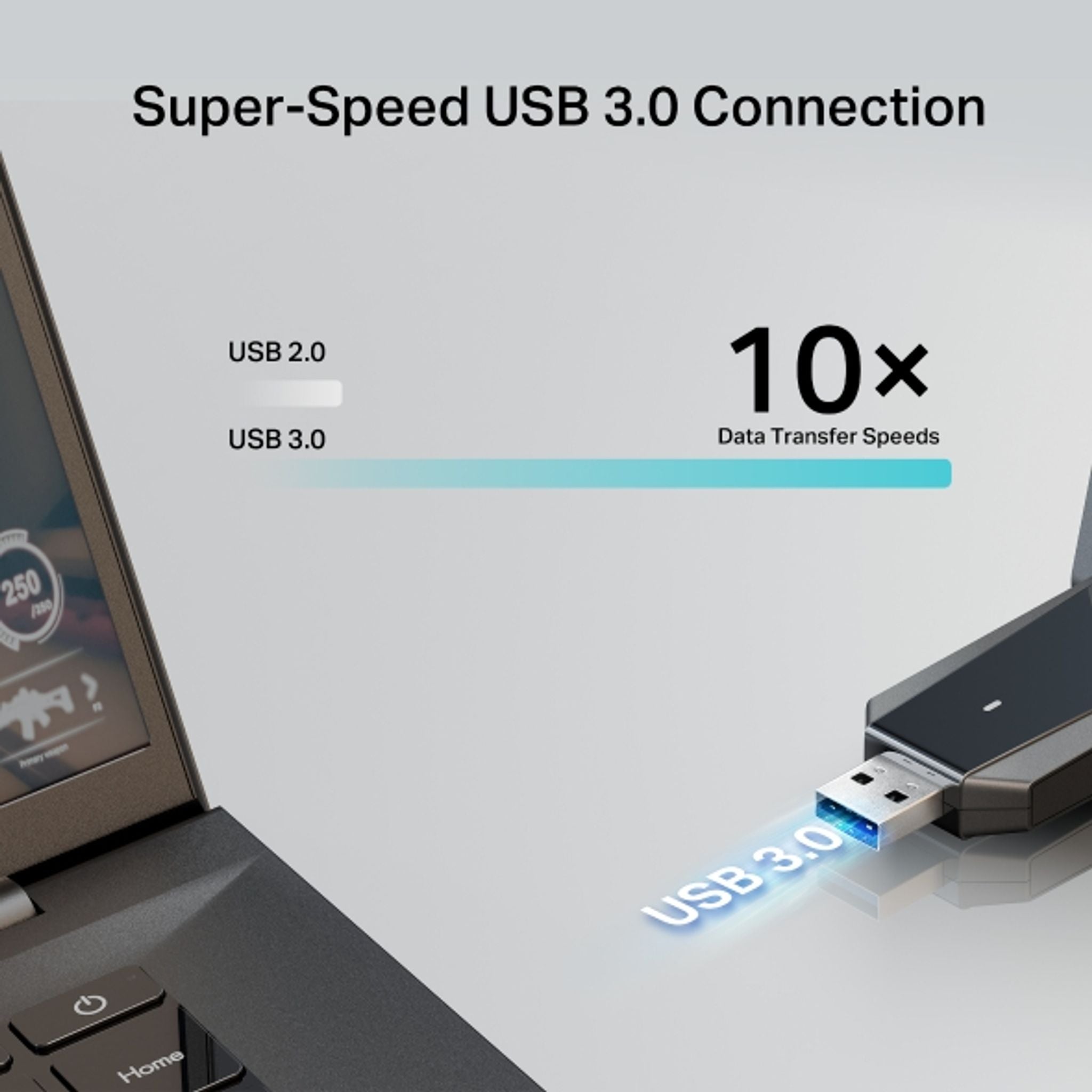

• Interface: USB 3.0
• LED: Status LED

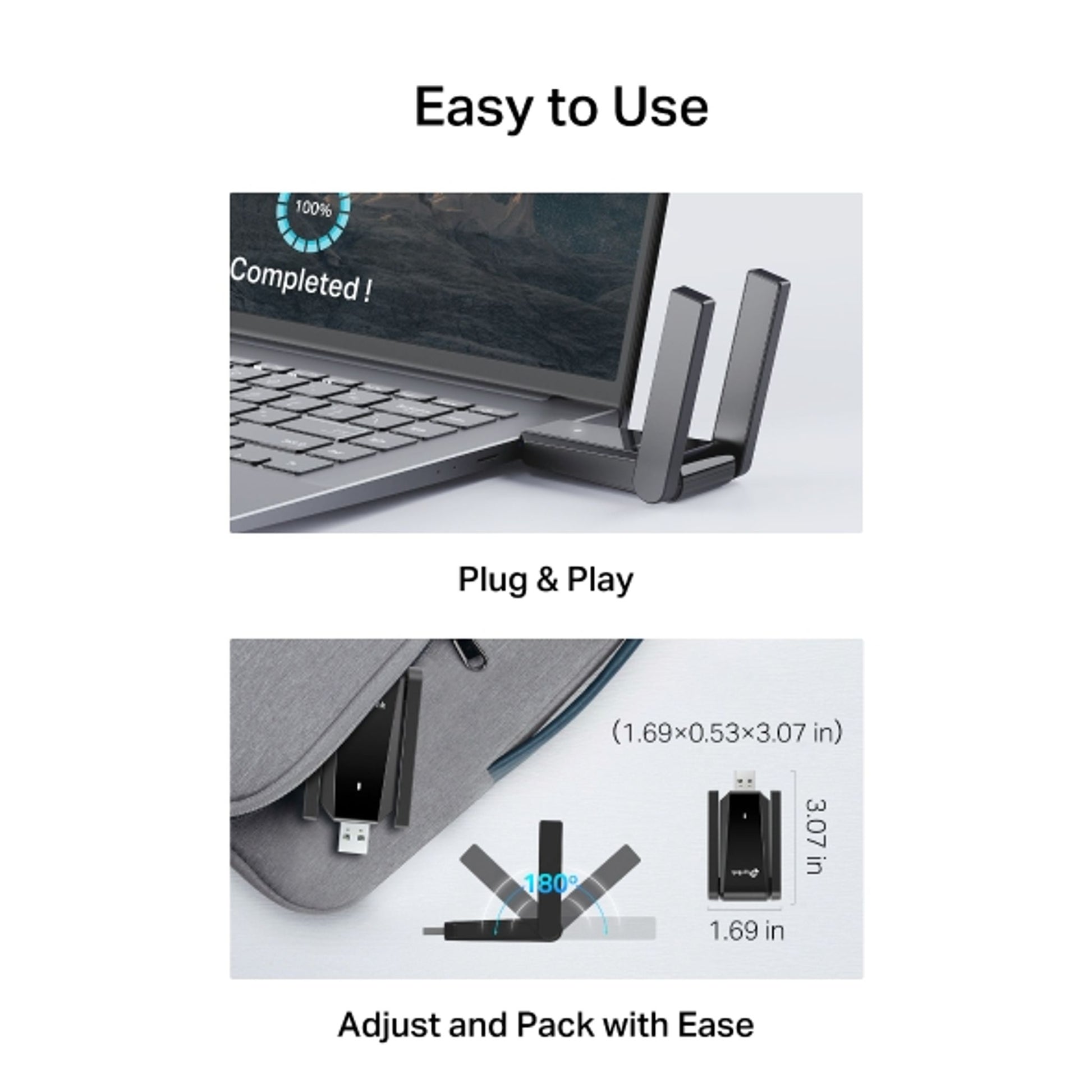

• Dimensions: 43 × 13.5 × 78.1 mm (1.69 × 0.53 × 3.07 in)
• Antenna: 2× External High Gain Antennas

Wireless Features

• Wireless Standards: IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
• Signal Rate (Dynamic):
  • 5 GHz: 11ac - Up to 867 Mbps, 11n - Up to 400 Mbps, 11a - Up to 54 Mbps
  • 2.4 GHz: 11n - Up to 400 Mbps, 11g - Up to 54 Mbps, 11b - Up to 11 Mbps
• WLAN Reception Sensitivity:
  • 5 GHz: VHT80 -63 dBm, VHT20 -69 dBm, HT40 -71dBm, HT20 -74dBm, 11a 54Mbps -76dBm
  • 2.4 GHz: HT40 -68dBm, HT20 -70dBm, 11g 54Mbps -74dBm, 11b 11Mbps -86dBm
• Wireless Modes: Infrastructure mode
• Transmission Power:
  • 5 GHz: 20dBm (FCC) / 18dBm (CE) (EIRP)
  • 2.4 GHz: 19dBm (FCC) / 17dBm (CE) (EIRP)

Software Features

• Security: WEP, WPA/WPA2/WPA3 (Personal/Enterprise), WPA-PSK/WPA2-PSK

Certification & Package Content

• Certification: FCC, CE, RoHS
• Package Content: AC1300 Dual Antennas High Gain Wireless USB Adapter Archer T5U Plus, Quick Installation Guide

System Requirements & Environment

• Supported Operating Systems: Windows 7/8/8.1/10/11
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
