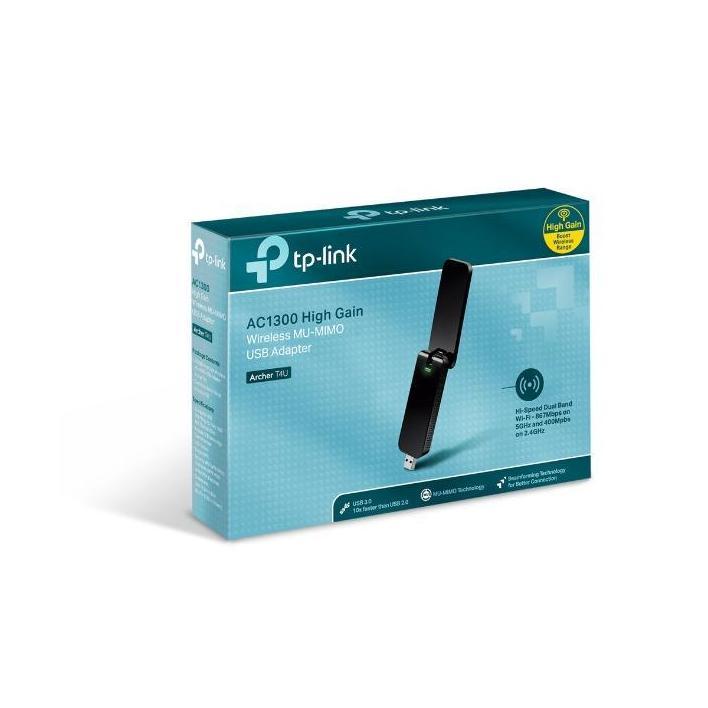

TP-Link Archer T4U AC1300 Dual Band USB Adapter 2.4GHz 400Mbps 5GHz 867Mbps USB 3.0

The TP-Link Archer T4U AC1300 is a high-performance dual-band USB adapter designed for ultra-fast Wi-Fi connectivity. It supports both 2.4GHz and 5GHz bands with speeds of up to 400Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, adhering to the next-generation 802.11ac standard.

Display

• No display features applicable

Performance

• Dual Band Wireless: Supports both 2.4GHz and 5GHz bands for flexible connectivity
• MU-MIMO Technology: Delivers highly efficient wireless connections
• Super Speed USB 3.0 Port: Up to 10 times faster transfer speeds than USB 2.0

Storage

• No storage features applicable

Connectivity

• Wireless Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 5GHz and 2.4GHz bands
• Signal Rate: Up to 867Mbps on the 5GHz band (dynamic) and up to 400Mbps on the 2.4GHz band (dynamic)
• Reception Sensitivity: Varies by standard, with ranges from -91dBm to -62dBm
• Transmit Power: Less than 20dBm (EIRP)
• Wireless Modes: Ad-Hoc / Infrastructure mode
• Wireless Security: Supports 64/128 bit WEP, WPA-PSK/WPA2-PSK
• Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

HARDWARE FEATURES

• Interface: USB 3.0
• Button: WPS button for easy wireless security encryption
• Dimensions (W x D x H): 3.64×1.24×0.55 in. (92.47×31.55×13.9mm)
• Antenna: 2 High Gain External Omni Directional Antennas

Certification and Requirements

• Certifications: CE, FCC, RoHS
• Package Contents: AC1300 High Gain Wireless MU-MIMO USB Adapter Archer T4U, Quick Installation Guide, Resource CD
• System Requirements: Windows 10/8.1/8/7/XP, Mac OS X 10.9-10.13
• Environment: Operating Temperature: 0℃~40℃ (32℉~104℉), Storage Temperature: -40℃~70℃ (-40℉~158℉), Operating Humidity: 10%~90%
