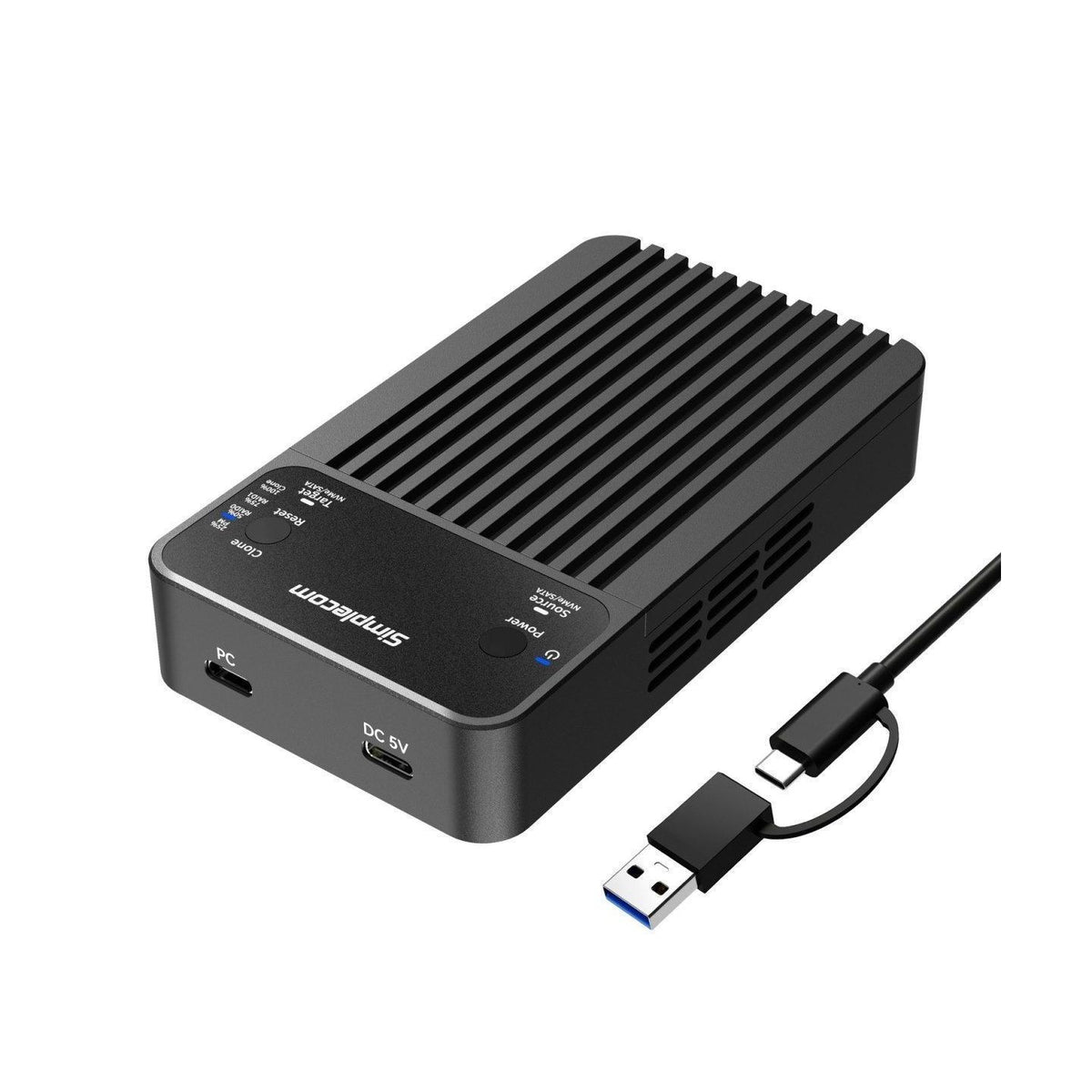

Simplecom SD562 Dual-Bay NVMe/SATA M.2 SSD RAID Enclosure USB 3.2 Gen2 Offiline

The Simplecom SD562 is a high-performance dual-bay M.2 SSD enclosure designed for flexible storage expansion and efficient data management. Supporting both NVMe and SATA M.2 SSDs, it allows users to install two M.2 drives and operate them in multiple modes, including RAID 0, RAID 1, normal partition mode, and clone mode.

Features

• Dual-bay NVMe/SATA M.2 SSD enclosure with four operating modes
• Supports RAID 0, RAID 1, clone and normal partition modes
• USB 3.2 Gen 2 interface with data transfer speeds up to 10Gbps
• Built-in cooling fan effectively reduces operating temperatures
• Durable aluminium enclosure with excellent heat dissipation
• Tool-free installation with magnetic top cover
• Plug and play, no additional driver software required
• LED indicators for RAID mode, clone mode and drive activity status

Specifications

• Interface: USB-C (USB 3.2 Gen 2)
• Transfer Rate: Up to 10Gbps
• SSD Support: 2x NVMe M.2 or 2x SATA M.2 SSDs (NVMe and SATA M.2 cannot be used simultaneously)
• SSD Size Support: 2230 / 2242 / 2260 (Source Slot only) / 2280
• Cooling Fan: 20mm radial fan
• Main Material: Aluminium
• Power Input: DC 5V/3A
• Dimensions: 120x 68 x 22mm (LxWxH)
• Weight: 208g (without SSD)
• Supported Operating Systems: Windows 7 or later, macOS 10.8 or later

Package Contents

• 1x SD562 Dual-Bay M.2 SSD Enclosure
• 1x USB-C and USB-A Combo Cable
• 1x Power Adapter
• 2x Silicone thermal pads
• 2x Aluminium thermal pads
• 1x User Manual

Important Notes

• Only supports reading or cloning two SSDs with the same protocol (two M.2 NVMe SSDs or two M.2 SATA SSDs). NVMe and SATA M.2 SSDs cannot be used simultaneously in any of the four modes.
• Switching modes will format both SSDs. Please back up important data before switching modes to avoid data loss.
