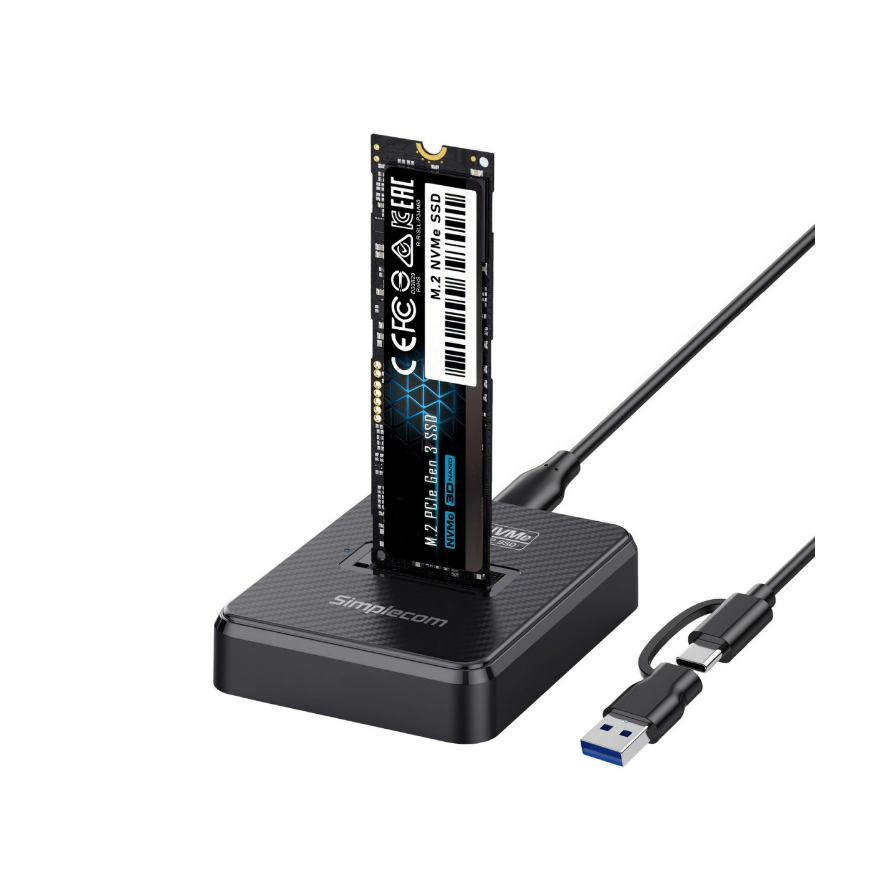

Simplecom SD511 NVMe/SATA M.2 SSD Docking Station USB 3.2 Gen 2 10Gbps

The Simplecom SD511 is a high-speed, dual-protocol M.2 SSD Docking Station designed for both NVMe and SATA M.2 SSDs. It provides quick access to M.2 SSD drives through the USB port, featuring a USB 3.2 Gen 2 interface that supports data transfer rates up to 10Gbps.

Features

• Dual protocol support for both NVMe and SATA M.2 SSDs
• Compatible with M Key or B+M Key M.2 SSDs
• USB-C interface compliant with USB 3.2 Gen 2 standard
• Data transfer rates up to 10Gbps (NVMe) and 6Gbps (SATA)
• Included USB-C and USB-A combo cable for flexible connectivity
• Supports UASP for faster data transfer speeds
• TRIM command support for improved SSD life
• Plug-and-play design with no drivers required
• LED indicator for power and activity status
• USB powered, no external power needed

Specifications

• Model: SD511
• Material: ABS Plastic
• Interface: USB-C (USB 3.2 Gen 2)
• Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
• Compatible M.2 Type: NVMe M.2, SATA M.2
• Compatible M.2 Size: 2230 / 2242 / 2260 / 2280 / 22110
• Dimensions: 66 x 51 x 13mm (LxWxH)
• Weight: 40g
• Operating System Support: Windows 7 and later, macOS 10.8 and later, Linux

Package Contents

• 1x SD511 M.2 SSD Docking Station
• 1x USB-C + USB-A combo cable
• 1x User Manual
