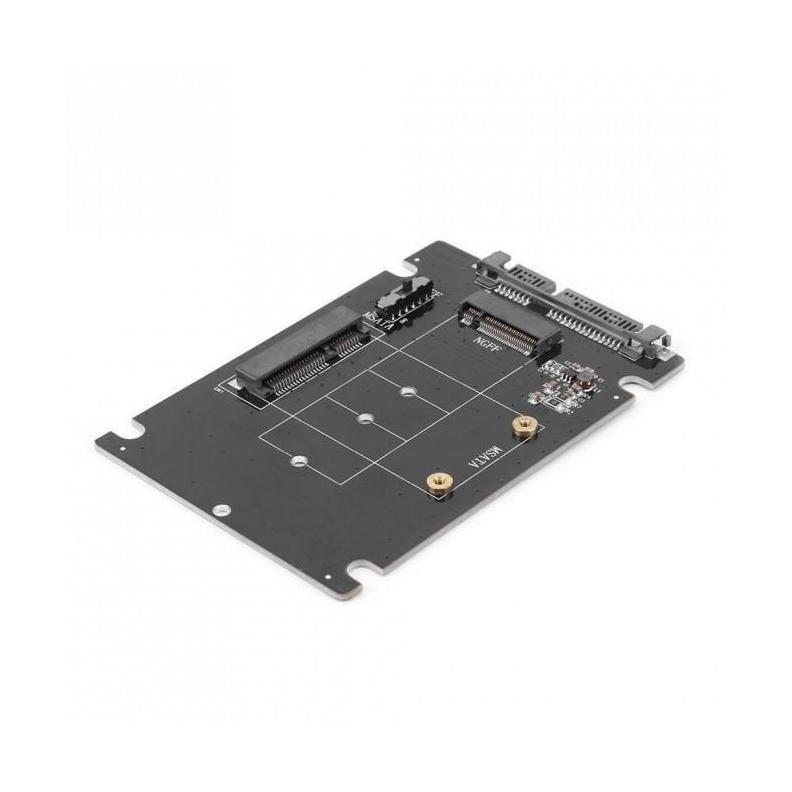

Simplecom SA207 mSATA M.2 NGFF to SATA Adapter

The Simplecom SA207 is a versatile 2-in-1 combo adapter designed for both mSATA and M.2 (NGFF) SSDs to convert them into SATA interface devices. This adapter allows easy access to your SSD via standard SATA ports on PCs or installation in external enclosures, making it ideal for data backup and migration.

Features

• mSATA + M.2 SSD 2-in-1 combo adapter
• Convert mSATA or M.2 SSD to SATA 3 interface
• On-board switch between mSATA and M.2 formats
• Plug-and-play functionality with no drivers required
• Supports various form factors of mSATA and M.2 (B Key Only or B+M key) SSDs
• Not compatible with NVMe PCIe M.2 SSDs (M Key)

Physical Specifications

• Circuit board size: 97x65x5mm

Compatibility

• M.2(NGFF) SSD support:
• Type 2230-D2-B-M (30mm x 22mm)
• Type 2242-D2-B-M (42mm x 22mm)
• Type 2260-D2-B-M (60mm x 22mm)
• Type 2280-D2-B-M (80mm x 22mm)
• mSATA SSD support:
• Full size mSATA (50.95mm x 30mm)

Package Contents

• 1x mSATA + M.2 SSD to SATA 2-in-1 Combo Adapter
• 1x Screw driver
• Screw with Washer
