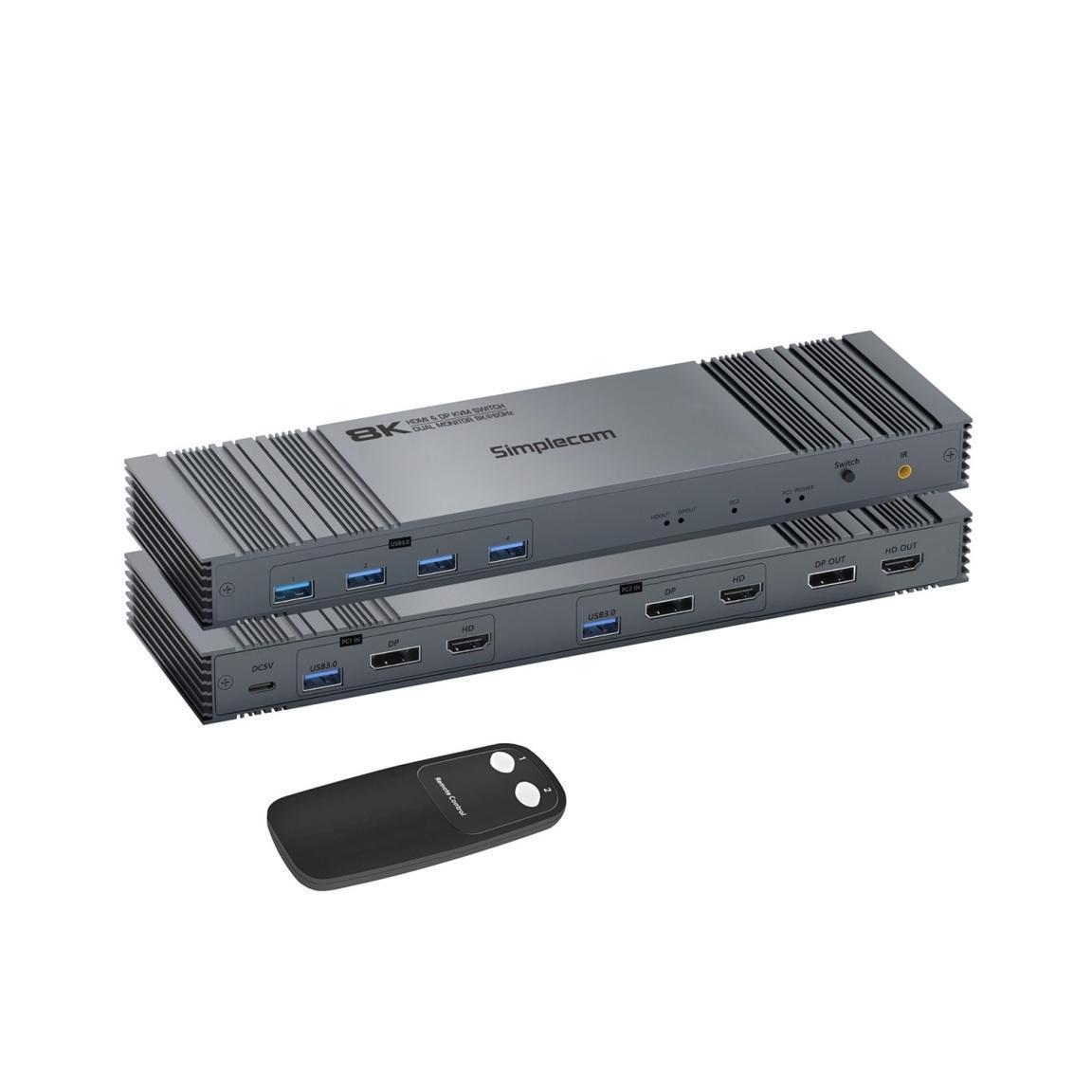

Simplecom KM490 HDMI DisplayPort Dual Monitor KVM Switch 4-Port USB Hub 8K@60Hz

The Simplecom KM490 is a dual monitor KVM switch that allows two computers to share two displays and four USB peripherals. Equipped with HDMI 2.1 and DisplayPort 1.4 ports, it supports video resolutions up to 8K@60Hz for crystal-clear visuals.

Display

• HDMI 2.1 x2 (input), HDMI 2.1 x1 (output)
• DP 1.4 x2 (input), DP 1.4 x1 (output)
• Max video resolution: 8K@60Hz, 4K@144Hz, 2K@165Hz, 1080p@240Hz

Performance

• USB Max Bandwidth: SuperSpeed 5Gbps
• Video Max Bandwidth: up to 48Gbps

Storage

N/A

Connectivity

• USB Upstream Ports: USB 3.0 AF x2 (connect to PC1 and PC2)
• USB Downstream Ports: USB 3.0 AF x4 (connect USB peripherals)
• Power Input: USB-C, DC 5V
• Remote Control Included

Compatibility

• Operating Systems: Windows, MacOS, Linux, Chrome OS
• Backward compatible with previous versions of USB, HDMI and DP

Physical Specifications

• Dimensions (L x W x H): 25.9 x 7.4 x 2.6cm
• Weight: 468g
• Operating Temperature Range: -5°C to 45°C
• Operating Humidity Range: 5 to 90%RH (no condensation)

Package Contents

• Dual Display KVM Switch
• 2x USB-A to USB-A 5Gbps Data Cables
• USB-C Power Cable
• 5V USB Power Adapter
• Remote Control
• IR Receiver Cable for Remote

The Simplecom KM490 is plug-and-play with no drivers required and features a durable aluminium alloy casing that efficiently dissipates heat. LED indicators provide clear status updates on power and active computer connections.
