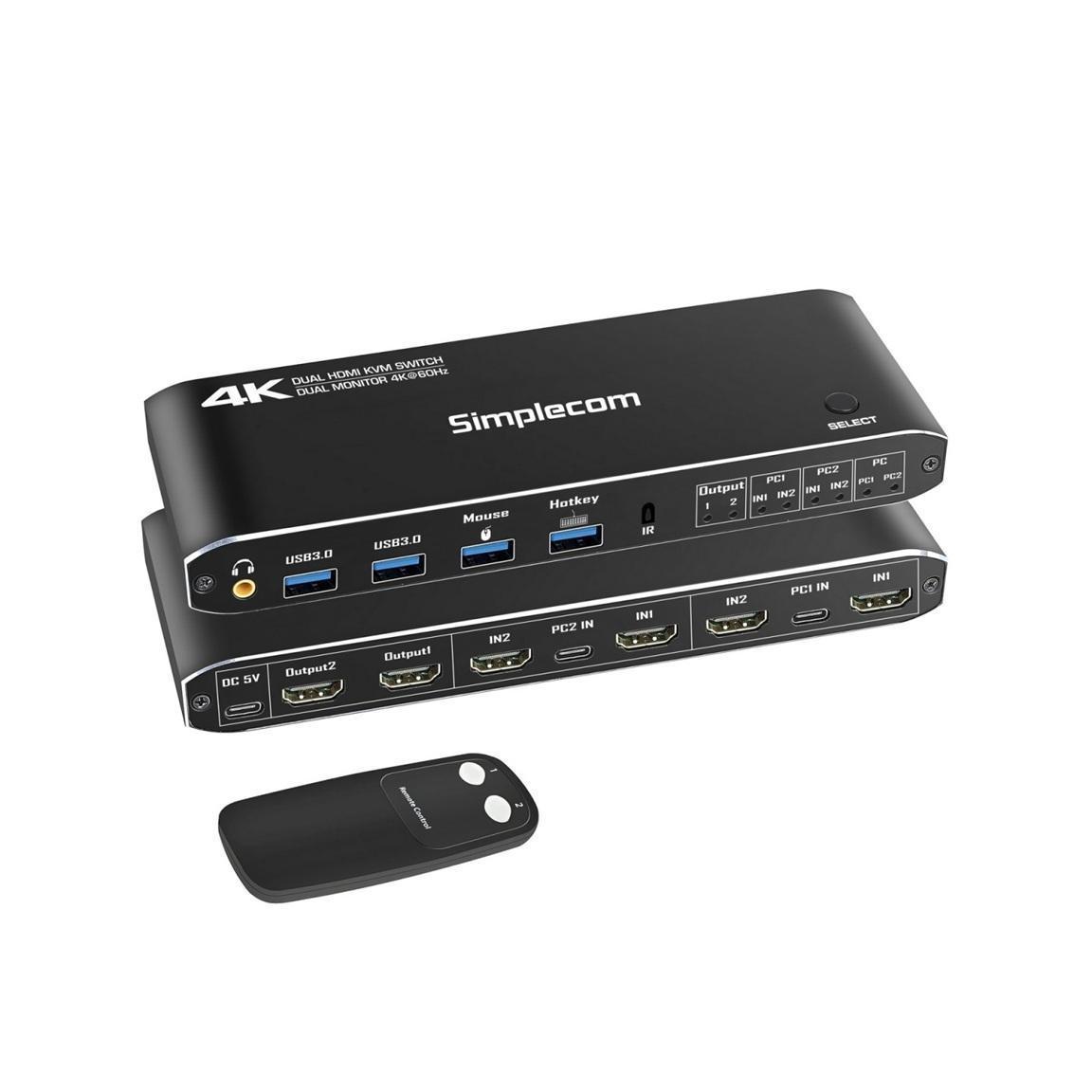

Simplecom KM430 Dual HDMI 4K@60Hz KVM Switch 4-Port USB Hub
Available in stock (20)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 220 mm |
|---|---|
| Width | 136 mm |
| Height | 40 mm |
Product Details
Product Details
The Simplecom KM430 is a dual HDMI KVM switch designed for efficient control of two computers using a single set of peripherals and up to two monitors. This device supports both extended and mirrored display modes with HDMI 2.0 compliance, enabling video resolutions up to 4K@60Hz on each screen.
Display
- HDMI Input Ports: HDMI 2.0 x4 (connects to PC1 and PC2)
- HDMI Output Ports: HDMI 2.0 x2 (connects to two displays)
- Max Video Resolution: 4K@60Hz, 2K@120Hz, 1080p@144Hz
- Cable Length Support: ≤5m
Performance
- Video Bandwidth: Up to 18Gbps
- USB Max Bandwidth: USB 3.0 up to 5Gbps, USB 2.0 up to 480Mbps
Storage and Connectivity
- USB Upstream Ports: USB-C x2 (connects PC1 and PC2)
- USB Downstream Ports: USB 3.0 x2, USB 2.0 x2 (for keyboard and mouse)
- Audio Output Port: 3.5mm audio jack
- Power Input: USB-C, DC 5V (backup power only)
User Interface
- Toggle Button for Switching Computers
- Included Remote Control
- Dedicated USB Keyboard Port with Hotkey Functionality
Compatibility and Support
- Plug-and-Play, No Drivers Required
- Works Seamlessly Across Windows, macOS, Linux, and Chrome OS
- Package Includes: KVM Switch, 2x USB-C to USB-A Data Cables, 1x USB-C to USB-A Power Cable, Remote Control
The durable aluminium alloy casing ensures efficient heat dissipation and long-lasting use. LED indicators provide clear status updates for active computer connections.
Warranty
Warranty
Manufacturer warranty 12 Months
