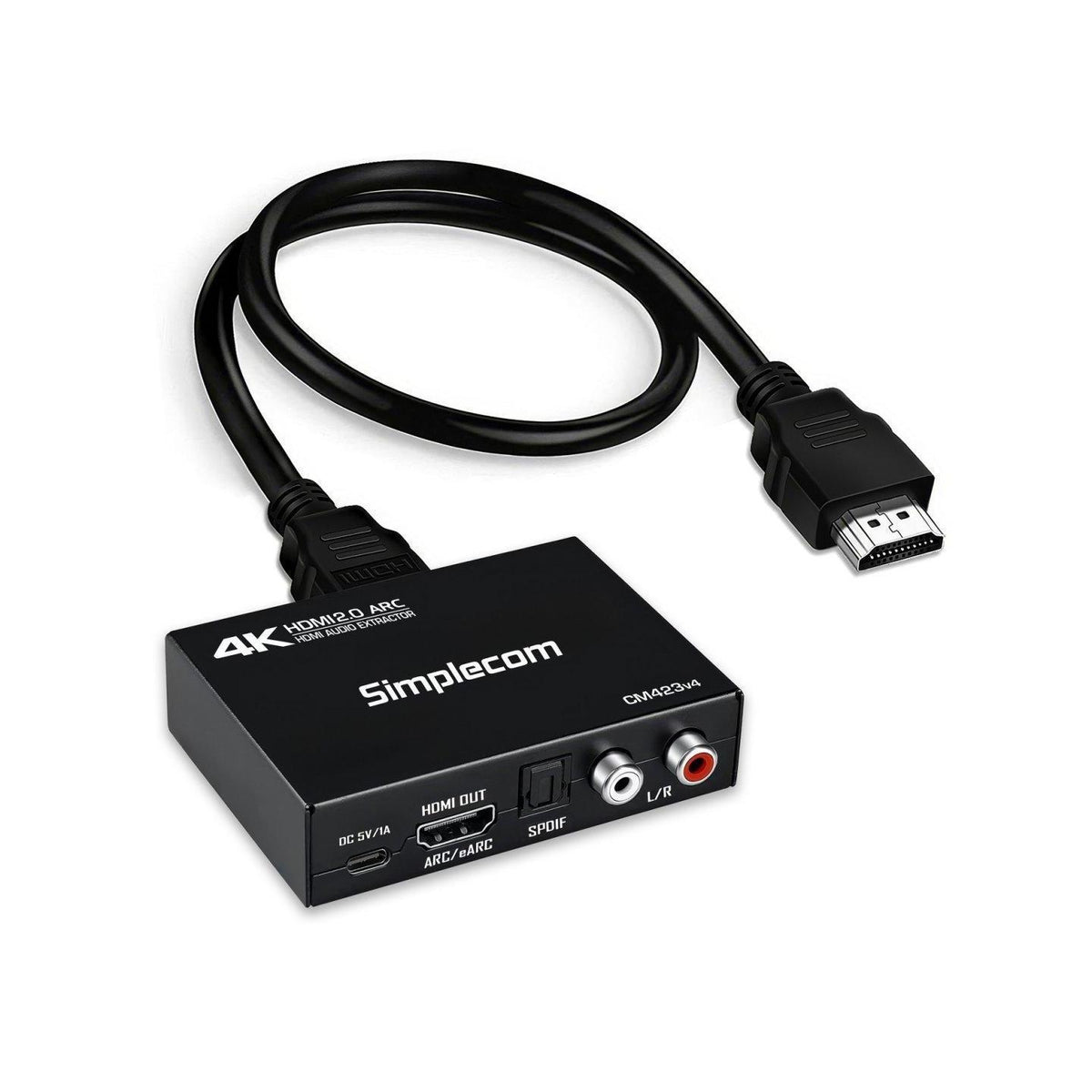

Simplecom CM423v4 HDMI 2.0 Audio Extractor Optical SPDIF 2RCA 3.5mm 4K@60Hz
Available in stock (46)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 148 mm |
|---|---|
| Width | 130 mm |
| Height | 36 mm |
Product Details
Product Details
The Simplecom CM423v4 HDMI 2.0 Audio Extractor is designed to deliver high-quality audio extraction for AV setups requiring flexible connectivity options. This device supports up to 18Gbps bandwidth and resolutions up to 4K@60Hz, making it an ideal solution for outputting audio to external speaker systems with analog or optical inputs.
Display
- HDMI resolution support: 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz
Performance
- HDMI Version: HDMI 2.0b (backwards compatible)
- HDCP Version: HDCP 2.2
- Max Bandwidth: 18Gbps
- HDMI 3D Support: Yes
- Digital audio support: Dolby Digital, Dolby TrueHD, DTS-HD, DTS, PCM, LPCM
- Supports compressed and uncompressed audio formats including DTS Digital, Dolby Digital and PCM/LPCM
Connectivity
- HDMI Input: 1x HDMI Input
- HDMI Output: 1x HDMI output (HDMI pass-through)
- AUDIO Outputs: PDIF (Optical), 3.5mm Audio (Analog), 2RCA Audio (Analog)
- ARC/eARC Support: Yes (via HDMI OUT)
Power and Dimensions
- Powered by USB-C port for power input (5V/1A)
- Dimensions: 85 x 61 x 22mm (LxWxH)
The Simplecom CM423v4 features dual audio extraction modes, allowing you to extract audio either directly from an HDMI source device or from your TV’s ARC/eARC HDMI port. It is HDCP 2.2 compliant and ensures reliable playback of protected content.
