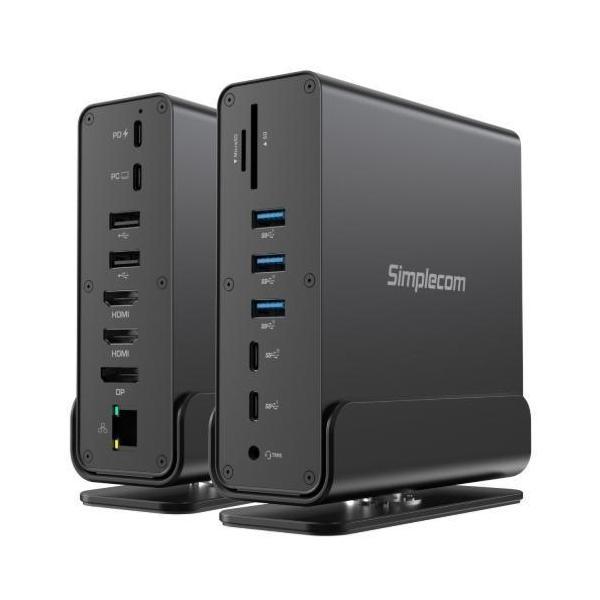

Simplecom CHT815 15-in-1 USB-C 4K Triple Display MST DockDual HDMI DP

The Simplecom CHT815 is a versatile docking station designed to enhance your productivity with its comprehensive set of features and connectivity options.

Display

• HDMI Ports: 2x HDMI 2.0 (up to 4K@60Hz)
• Digital Video Port: 1x DP 1.4 (up to 4K@60Hz)

Performance and Connectivity

• USB-A Data Ports: 2x USB 480Mbps, 1x USB 5Gbps, 2x USB 10Gbps
• USB-C Data Ports: 1x USB 5Gbps, 1x USB 10Gbps (for charging up to 100W)
• Ethernet Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
• Audio Jack: 4-Pole TRRS 3.5mm Audio Jack (StereoMic Combo)
• Card Reader: SD and MicroSD (SuperSpeed 5Gbps)

Compatibility

• Operating Systems: Windows 10 or above for MST support, macOS supports one extended mode output only
• Laptop GPU Requirements: DP1.4 for up to 3x extended screens, DP1.2 for up to 2x extended screens
• Note: Ensure your USB-C port supports DisplayPort Alternate Mode (DP Alt Mode) before purchasing.

Physical Specifications

• Made of: Aluminium
• Weight: 350g
• Dimensions: 12.6cm (13.8cm with vertical stand) x 12.1cm x 4.2cm
• Operating Temperature Range: 0 - 50°C

Package Contents

• 1x 15-in-1 Docking Station
• 1x USB4 Cable
• 1x Vertical Stand
• 1x User Manual
