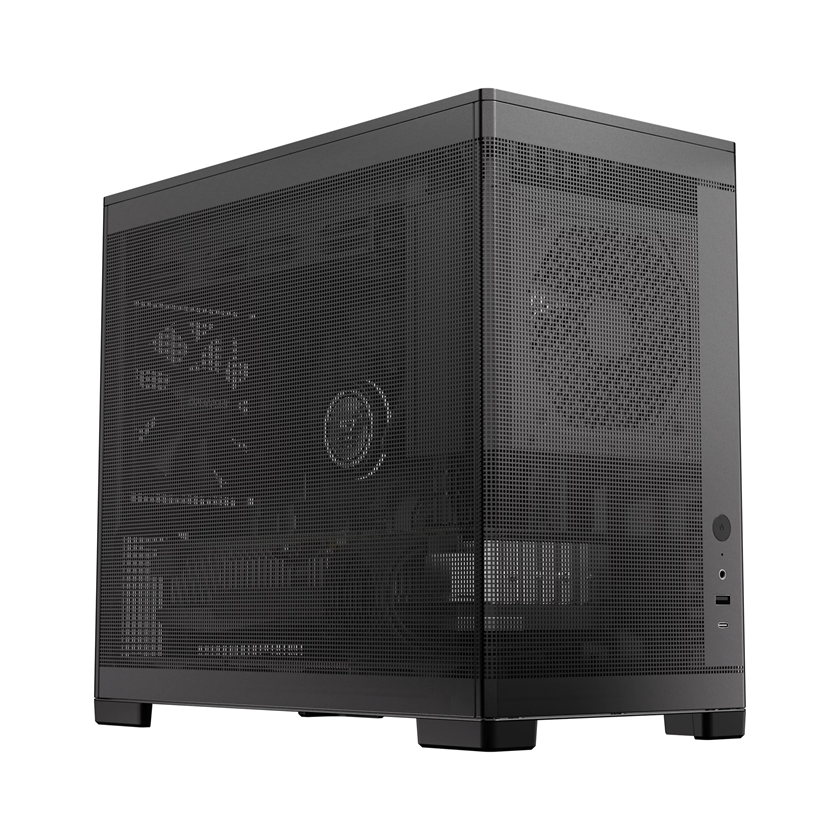

OKINOS Mini Art 4 mATX/ITX USB-C Mesh Side 3×120mm Fans Case

The OKINOS Mini Art 4 is a compact and stylish case designed for mATX and ITX motherboards. It features a full mesh design with walnut badge accents, providing excellent airflow while maintaining a sleek appearance.

Display

• No display-related specifications available

Performance

• Airflow Design: Vertical airflow promotes smooth upward air flow for effective heat dissipation from key components.
• Cable Management: Up to 25mm clearance at the front and 8mm behind the motherboard tray allows for tidy cable routing.

Connectivity

• Front I/O Ports: USB Type-C 3.2 Gen 2 (10Gbps), USB 3.0, Power button, Headphone/Mic combo jack

Storage

• Drive Bays: 4 x 3.5" / 2.5", 1 x 2.5"

Expansion

• Expansion Slots: 4
• Radiator Support: Top: 240/120mm, Rear: 120mm

Fans and Cooling

• Included Fans: 2 x 120mm H12R 3 Pin Reverse Fans at the bottom + 1 x 120mm H12 3 Pin Fan at the rear
• Additional Fan Support: Top: 2 x 120mm, Bottom: 2 x 120mm, Rear: 1 x 120mm

Dimensions and Compatibility

• Form Factor: Mini Tower
• Materials: Steel + Plastic + Wood
• Mainboard Support: Micro-ATX, ITX
• Dimensions (DWH): 395 x 200 x 343 mm
• Max GPU Length: ≤330mm (Power Supply ≤140mm), ≤280mm (Power Supply >140mm)
• Max CPU Cooler Height: ≤165mm
• Max PSU Length: ≤150mm without cable

Miscellaneous

• Dust Filters: Full-size dust filters on top and bottom for enhanced durability.
• Weight: Net: 4.04kg, Gross: 4.99kg
• Top and Side Panels: Tool-free access with fine mesh panels to keep dust out while providing excellent ventilation.
