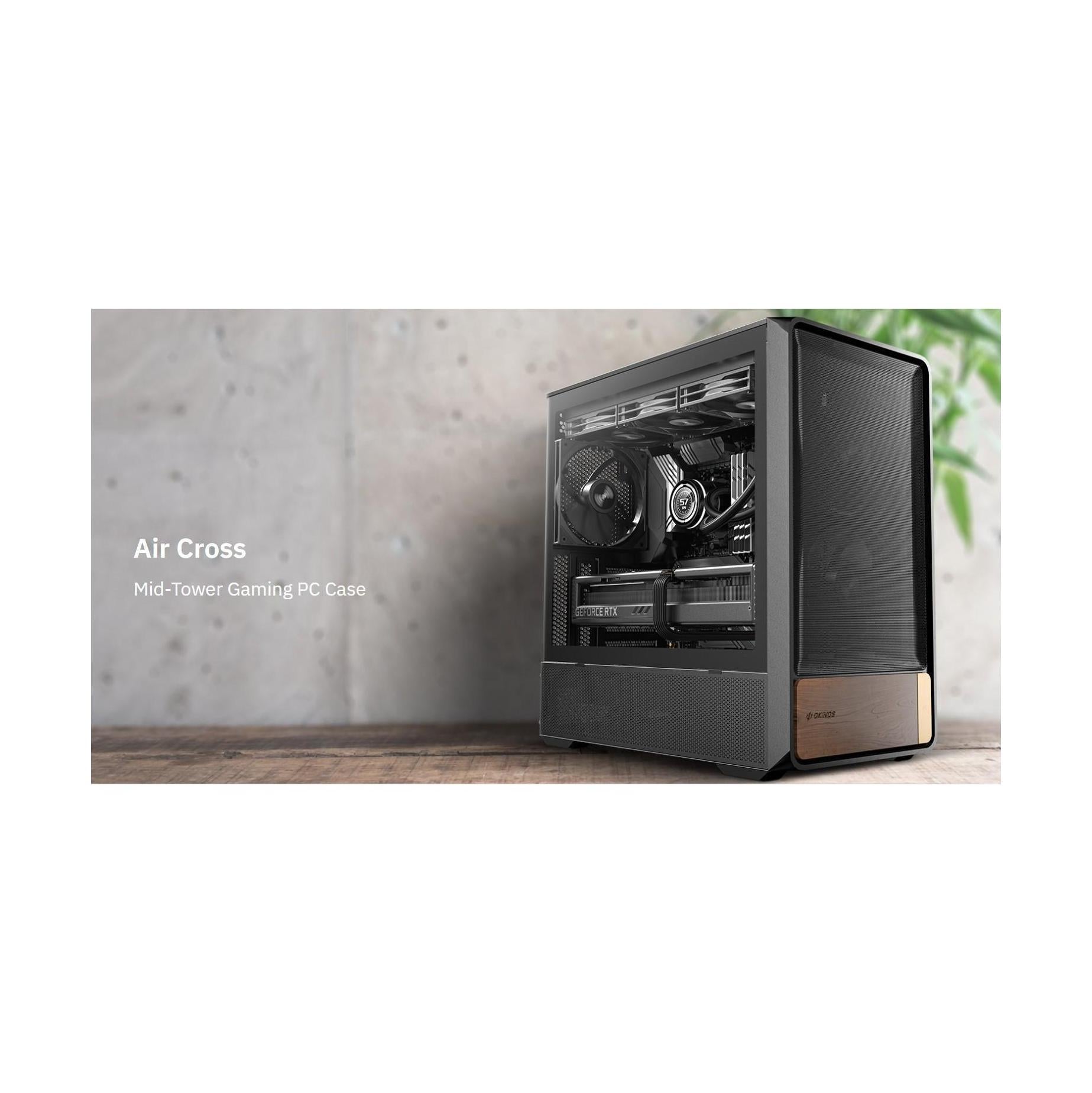

OKINOS Air Cross ATX USB3.0 x 2 Type-C x 1 4mm Tempered Glass Mid Tower Case

The OKINOS Air Cross is a mid-tower case designed for superior cooling and cable management. It features a dual-channel airflow design with horizontal air flow for the CPU and vertical for the GPU, ensuring efficient heat dissipation.

Cooling Features

• Dual-channel airflow design: Horizontal for CPU, vertical for GPU
• Pre-installed five high-performance H12 PWM fans
• Tool-less front mesh panel and removable tempered glass side and top panels
• Integrated GPU support bracket to prevent sagging of heavy graphics cards
• Spacious cable routing area with rubber grommets and Velcro straps for neat cable management

Build Quality and Design

• Fully supports BTF / Back-Connect motherboards for a clean, cable-free interior
• Premium walnut wood accents and custom-designed Starlight power button for modern aesthetics
• Distinctive triangular mesh on side panels for improved airflow and visual appeal
• 13A heavy-duty PSU extension cable for reliable power delivery

Dimensions and Compatibility

• Form Factor: Mid Tower
• Materials: Steel, Plastic, Wood
• Mainboard Support: ATX, Micro-ATX, ITX
• Front Access Controls: Power, Reset, USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps) x 1, Headphone/Mic Combo Jack
• DIMENSIONS: 468 x 238 x 462mm (DWH)
• Drive Bays: 7x 3.5", 2x 2.5"
• Expansion Slots: 7
• Max GPU Length: ≤400mm
• Max CPU Cooler Height: ≤180mm
• Max PSU Length (Without cable): ≤ 170mm

Cooling Support and Fan Installation

• Fan Front: 2x140mm, Top: 3x120/2x140mm, Rear: 1x120/1x140mm
• Power Supply Shroud: 2x120mm
• Included Fans: 2 x 140mm H14C PWM Fans at the front + 2 x 120mm H12CR PWM Reverse Fans on the power supply shroud + 1 x 140mm H14 PWM Fan at the rear + 1-to-3 PWM splitter cable
• Radiator Support Top: 360/280/240/140/120mm, Rear: 140/120mm

Weight and Packaging

• Net Weight: 8.17 Kg
• Gross Weight: 9.74 Kg
