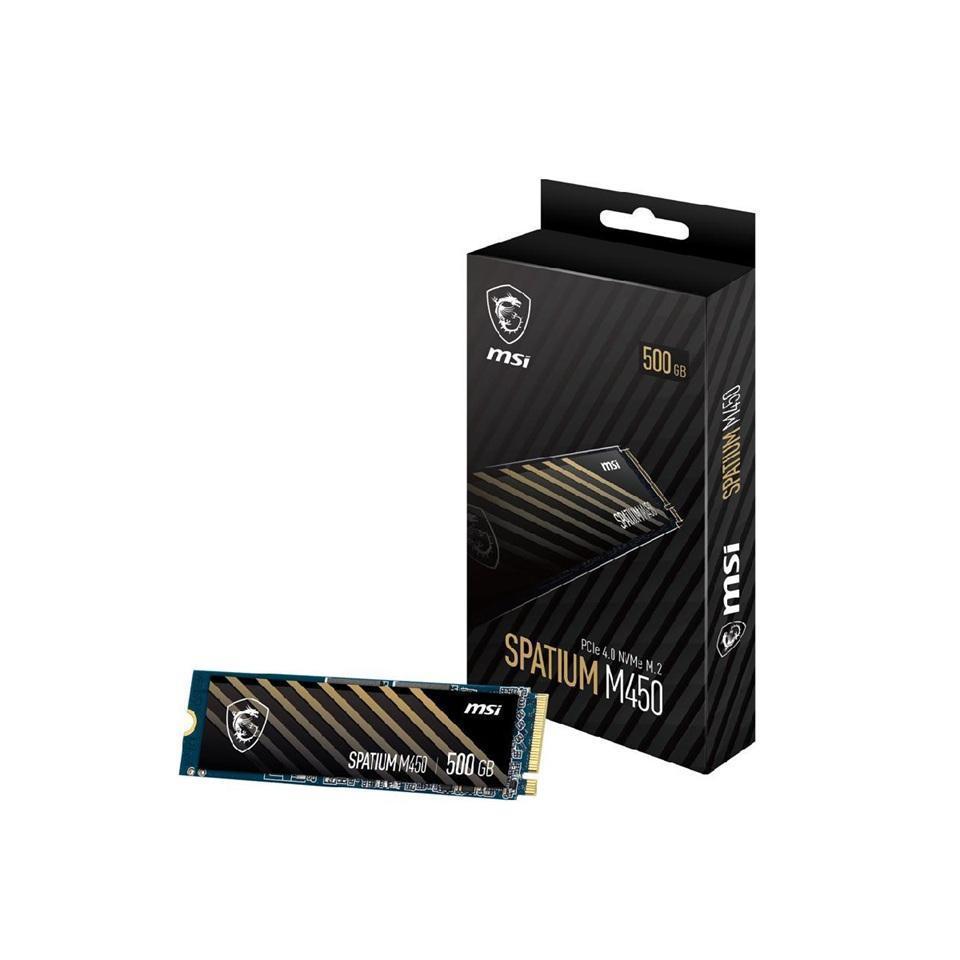

MSI SPATIUM M450 500GB NVMe SSD 3600/2300MB/s 300TBW PCIe 4.0 M.2 2280

The MSI SPATIUM M450 is a high-performance NVMe SSD with a capacity of 500GB and supports PCIe Gen4x4 interface. It features sequential read speeds up to 3600 MB/s and write speeds up to 2300 MB/s, making it suitable for demanding tasks.

Display

No display technology as this is an SSD.

Performance

• Sequential Read: Up to 3600 MB/s
• Sequential Write: Up to 2300 MB/s
• Random Read (4KB): Up to 300,000 IOPS
• Random Write (4KB): Up to 550,000 IOPS

Storage

• Capacity: 500GB
• TeraBytes Written (TBW): 300 TBW
• Mean Time Between Failure (MTBF): Up to 1,500,000 Hours
• Limited Warranty: 5 Years or maximum TBW coverage, whichever comes first.

Connectivity and Compatibility

• Interface: PCIe Gen4x4, NVMe 1.4
• Compatibility: PCIe Gen4 / Gen3 / Gen2 / Gen1

Advanced Features

• TRIM (Performance Optimization): OS support required.
• SMART (Self-Monitoring, Analysis and Reporting Technology):
• LDPC (Low Density Parity Check) ECC Algorithm:
• End to End Data Path Protection:
• APST (Autonomous Power State Transition):
• Pyrite (Encryption, Data Security):

Physical Specifications

• Form Factor: M.2 2280
• Dimensions: 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
• Operating Temperatures: 0°C – 70°C
• Storage Temperatures: -40°C – 85°C
• Maximum Operating Power: 3.4W
• Idle Power PS3 (mW): 40
• Low Power L1.2 (mW): 5
