MSI

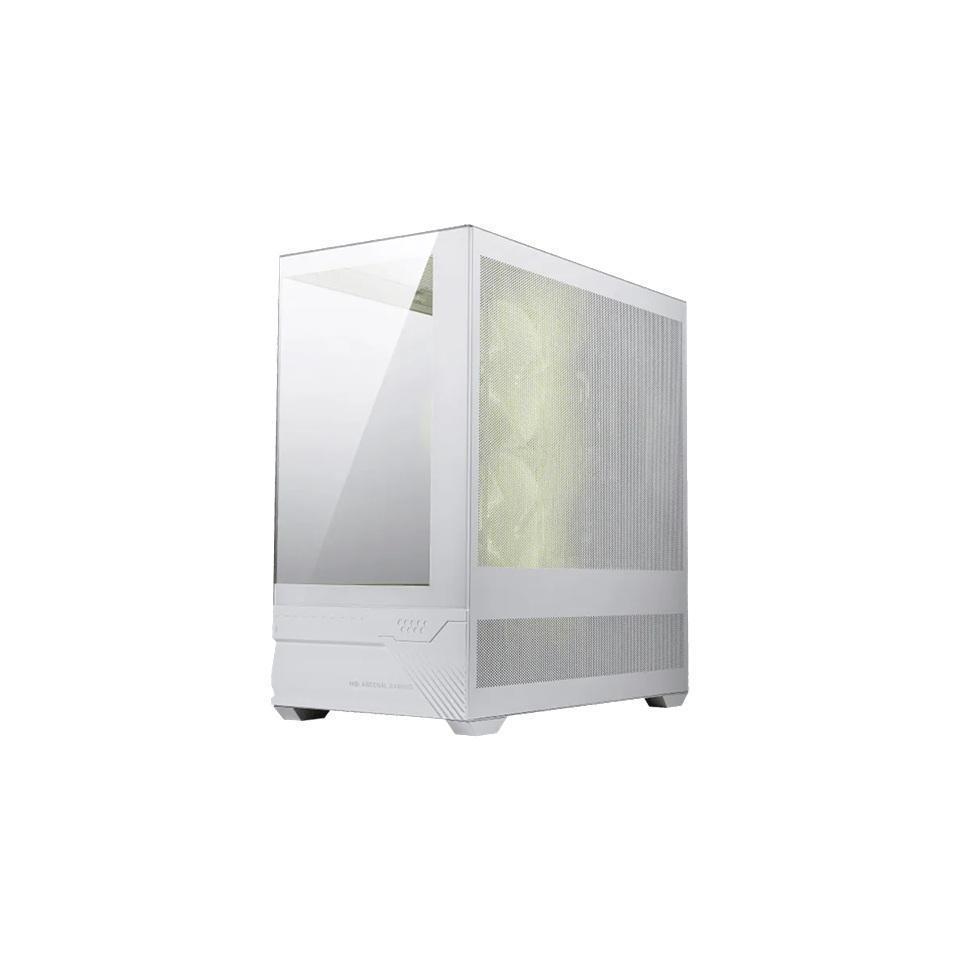

MSI MAG PANO M110R White Mini Tower Micro-ATX/Mini-ITX 270° Glass 3x ARGB Fans
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Graphics
| Max. GPU Length | 410 mm |
|---|
Cooling & Fans
| Max. CPU Cooler Height | 165 mm |
|---|---|
| Included Fan Count | 3 |
Case & Build
| Tempered Glass Panel | Yes |
|---|---|
| Chassis Type | Mini tower |
| Side Panel Style | Tempered glass window |
| Material | Glass, Metal |
| Compatible Motherboard Form Factor | Mini-ITX, Micro-ATX |
Lighting
| RGB Lighting | Yes |
|---|
Dimensions
| Length | 434 mm |
|---|---|
| Width | 225 mm |
| Height | 444 mm |
Other
| Series | MAG PANO M110R |
|---|---|
| Colour Code | White |
| Colour | White |
Description
Description
The MSI MAG PANO M110R is a compact mini-tower case with a unique 270-degree panoramic design that transforms your PC into a stunning visual centerpiece. It features dual 140 mm ARGB side fans and a rear 120 mm ARGB fan, providing striking lighting effects and clean cable management.
Display
- 270-degree panoramic design for an immersive view
Airflow Layout
- Supports up to nine fans with one 360 mm radiator mounting position
- Ventilation on the side panel enhances heat dissipation
ARGB Control Board
- 1-to-4 ARGB control board for effortless installation and customization of up to four independent fans
Tool-free Panels
- Easily removable front and side tempered glass panels for unobstructed access when installing components
I/O Ports
- 1 x USB 20Gbps (Type-C)
- 1 x Mic In / Audio Out
- 1 x USB 5Gbps (Type-A)
- 1 x LED Switch Button
- 1 x Power Button
Drive Mount Support
- 1 x 2.5” drive mount
- 1 x 3.5” drive mount
- 2 x 2.5” / 3.5” combo mounts
Expansion Slots and GPU Support
- Supports up to 5 expansion slots
- Maximum GPU length: 410 mm (16.14 inches)
Cooling Support
- Fan size support: Top - 3 x 120 mm / 2 x 140 mm, Rear - 1 x 120 mm, Side - 2 x 120 mm / 2 x 140 mm, Bottom - 3 x 120 mm
- Pre-installed fans: 2 x 140 mm ARGB side fans (reverse blades), 1 x 120 mm ARGB rear fan
- Radiator size support: Top - 120 / 140 / 240 / 280 / 360 mm, Rear - 120 mm, Side - 120 / 240 mm
Dimensions and Weight
- Dimensions: 434 x 225 x 444 mm (17.09 x 8.86 x 17.48 inches)
- Net weight: 5.7 kg (12.57 lbs)
- Gross weight: 8.0 kg (17.64 lbs)
Motherboard and PSU Support
- Supports Micro-ATX, Mini-ITX motherboards
- Maximum PSU length: 200 mm (7.87 inches)
Manuals & Downloads (2)
Manuals & Downloads (2)
- Product Brochure · Datasheet, PDF
- MAG PANO M110R / WHITE · Datasheet, PDF
