MSI

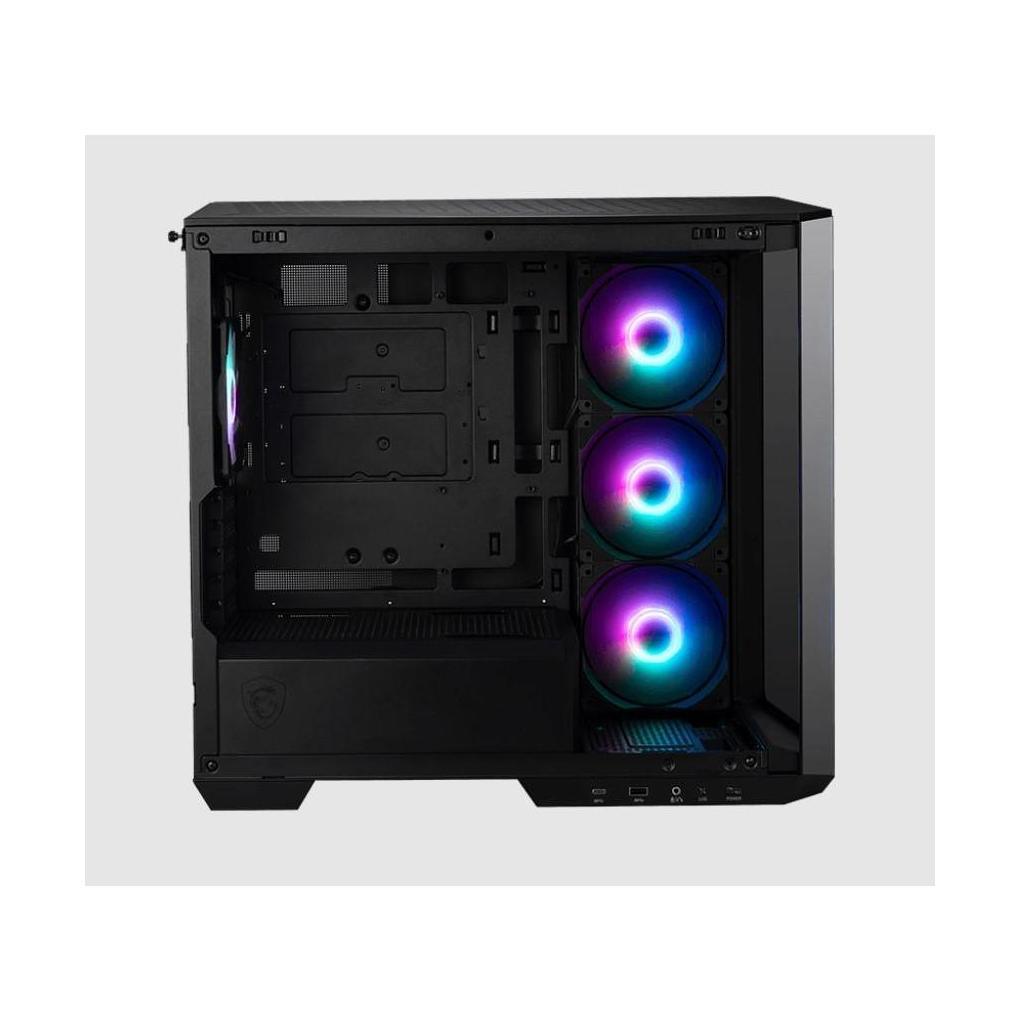

MSI MAG PANO M100R PZ Micro ATX Tower Case USB-C 1x 2.5" 1x 2.5/3.5
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Graphics
| Max. GPU Length | 390 mm |
|---|
Cooling & Fans
| Max. CPU Cooler Height | 175 mm |
|---|---|
| Included Fan Count | 5 |
Case & Build
| Chassis Type | Tower, Micro ATX |
|---|---|
| Side Panel Style | Other |
| Material | Metal, Plastic |
| Compatible Motherboard Form Factor | Micro-ATX, Mini-ITX |
| Compatible Power Supply Form Factor | ATX |
Lighting
| RGB Lighting | Yes |
|---|
Dimensions
| Length | 580 mm |
|---|---|
| Width | 280 mm |
| Height | 550 mm |
Other
| Series | MAG PANO M100R |
|---|---|
| Colour Code | White |
| Colour | White |
Description
Description
The MSI MAG PANO M100R PZ is a Micro ATX tower case designed for compact builds while offering flexibility and expandability. It supports both M-ATX and ITX motherboards with back-connect support.
I/O Ports
- 1 x USB 3.2 Gen 1 Type-A
- 1 x USB 3.2 Gen 2x2 Type-C
- 1 x Audio-Out / Mic-in
- 1 x LED Switch Button
- 1 x Power Button
Drive Mount Support
- 1 x 2.5"
- 1 x 2.5" / 3.5" combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)
Expansion Slots
- 5
Fan and Radiator Support
- Top: 3 x 120 mm / 2 x 140 mm, radiator support: 120 / 240 / 360 mm
- Rear: 1 x 120 mm / 1 x 140 mm, radiator support: 120 / 140 mm
- Side: 3 x 120 mm
- Bottom: 1 x 120 mm
- Pre-installed Fans: Front: 3 x ARGB Fan, Rear: 1 x ARGB Fan
Cooling and PSU Support
- Maximum GPU Length: 390 mm / 15.35 inches
- Maximum CPU Cooler Height: 175 mm / 6.9 inches
- Power Supply Support: ATX, maximum PSU length: 200 mm / 7.87 inches (without HDD tray installation)
- PSU Shroud: 2 x 120 mm
Dimensions and Weight
- Dimensions: 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches
- Net Weight: 8.66 kg
- Gross Weight: 11.29 kg
Manuals & Downloads (1)
Manuals & Downloads (1)
- Product Brochure · Datasheet, PDF
