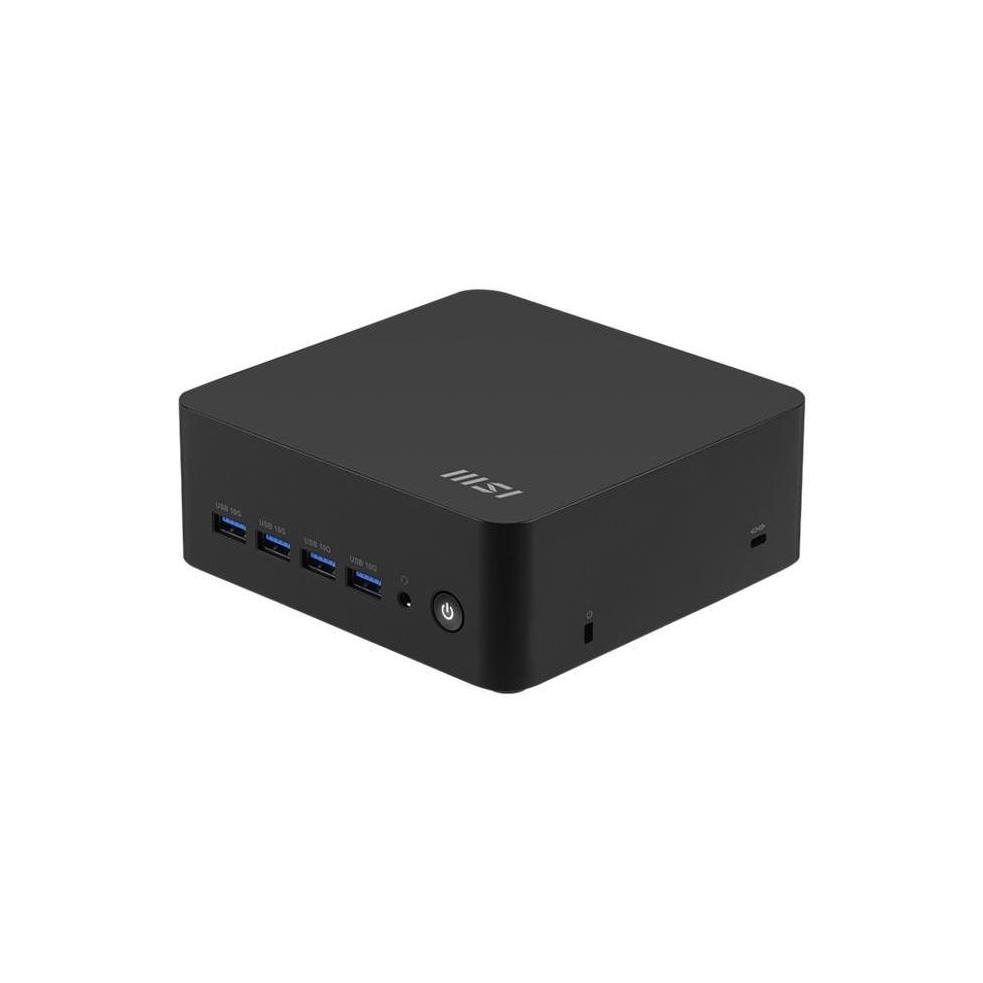

MSI Cubi Z AI 8M Ryzen 7 8845HS DDR5 2*M.2 2*HDMI WiFi 6E Mini PC

The MSI Cubi Z AI 8M is a compact mini PC powered by the AMD Ryzen™ 7 8845HS processor and equipped with up to 64GB DDR5 memory for efficient performance. It features dual M.2 NVMe PCIe Gen4 x4 SSD slots, providing fast data access and storage capabilities.

Display

• Supports up to four displays via two HDMI™ ports (each supporting 4K @60Hz)

Performance

• CPU: AMD Ryzen™ 7 8845HS
• Graphics: Integrated AMD Radeon™ Graphics
• Memory: Up to 64GB DDR5 SO-DIMMs (2x slots)
• AUDIO: Built-in speakers for clear audio without external devices
• MSI AI Engine: Optimises settings based on application needs, including lighting, performance, audio and visual adjustments.

Connectivity

• Wireless LAN: AMD RZ616 Wi-Fi 6E
• Bluetooth: Version 5.3
• Ethernet: Dual Realtek RTL8125BG (2.5G) LAN ports for Intranet and Internet connections.
• USB Ports:
  • Front: 4x USB 10Gbps Type A, 1x Mic-in/Headphone-out combo
  • Rear: 2x USB4 Type-C (DP 1.4 alt-mode up to 4K@60Hz / PD-out 15W), 1x USB 10Gbps Type A, 1x USB 2.0 Type A
  • Side: 1x Card Reader, 1x Kensington Lock, 1x External Power Switch Pin Header
• HDMI: 2x HDMI™ out (supports 4K @60Hz as specified in HDMI™ 2.1)

Other Features

• VESA mountable for wall mounting
• dTPM 2.0 support for enhanced data security
• Supports Windows 11 Home and Pro operating systems (MSI recommends Windows 11 Pro for business)

Sizes & Weight

• Dimensions: 136.00 x 132.00 x 50.10 mm (WxDxH)
• Weight: 0.79 Kg (N.W.) / 2.02 Kg (G.W.)

Certifications

• FCC, CB/CE, UL CUL, VCCI, RCM
