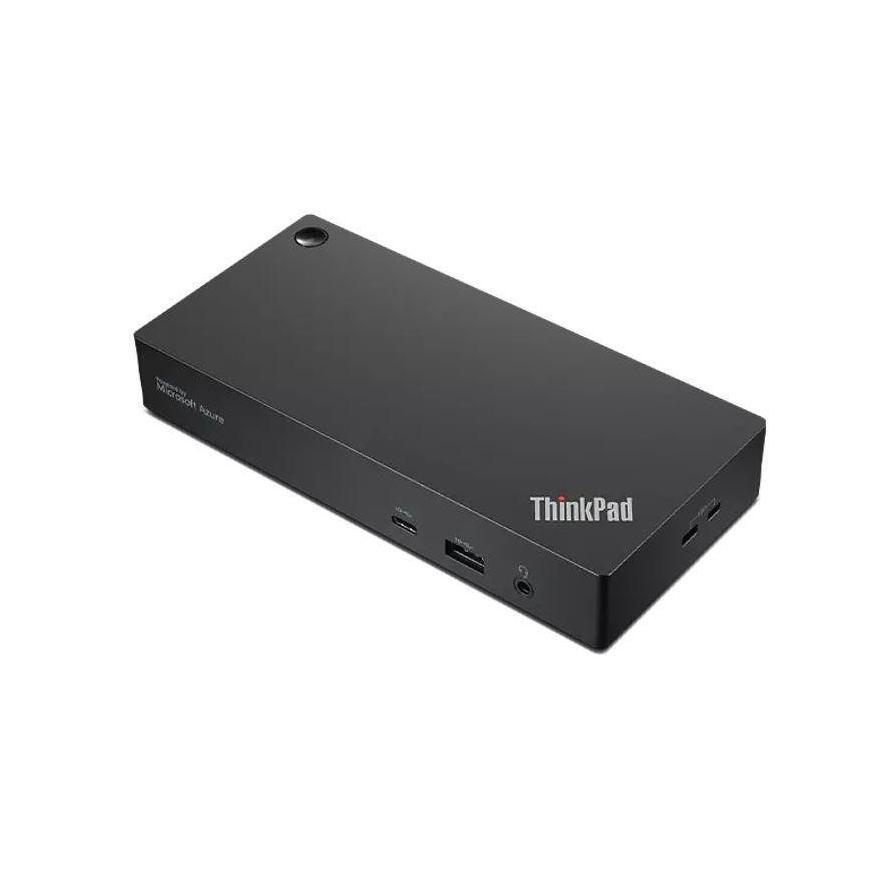

Lenovo ThinkPad Universal USB-C Smart Dock 100W 4K Triple Displays 2xDP HDMI 5xUSB-A GbE
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Ports & Connectivity
| Device Interface | Display port, Ethernet, HDMI, USB-C, VGA |
|---|---|
| USB Connector Type | USB Type-C, USB Type-A |
Power
| Power Source | AC-powered |
|---|
Dimensions
| Length | 206 mm |
|---|---|
| Width | 164 mm |
| Height | 76 mm |
Other
| Series | ThinkPad |
|---|---|
| Colour | Black |
Product Details
Product Details
The Lenovo ThinkPad Universal USB-C Smart Dock is an advanced docking solution designed to enhance productivity and flexibility in any work environment. This dock supports up to three external monitors with 4K resolution, making it ideal for multitasking professionals.
Display
- 2 x DisplayPort (DP) supporting dual 4K displays at 60Hz each
- 1 x HDMI port for a third display at 30Hz in 4K resolution
Connectivity
- Ethernet: 1 x Gigabit Ethernet (GbE)
- VGA: Not included
- HDMI: 1 port for video output
- Audio: 1 x Combo Audio Jack
USB Ports
- 5 x USB ports: 3 x USB 3.2 Gen 2 and 2 x USB 2.0
- 1 x USB-C port for data transfer and charging
Performance & Power
- Output power: Up to 65W with the included 90W adapter; up to 100W with an optional 135W slim-tip adapter
- Charging port: DC-IN for rapid charging of USB-C notebooks (up to 100W)
- Power button: Included on the dock
- Firmware updates: Automatic installation of critical firmware updates
Physical Specifications
- Dimensions: Length 171mm, Depth 80mm, Height 30.75mm
- Weight: 340g
- Operating temperature range: 0°C to 35°C
- Relative humidity: 20% to 95% (no condensation)
Compatibility & Support
- OS requirements: Windows 11, Windows 10, and Windows 7
- Driver needed: Yes
- Warranty: Three years with CRU warranty type
- Australian agency approvals: RCM
The Lenovo ThinkPad Universal USB-C Smart Dock is packed in a brown box and includes the dock, 90W AC power adapter, power cord, documentation, and cables.
