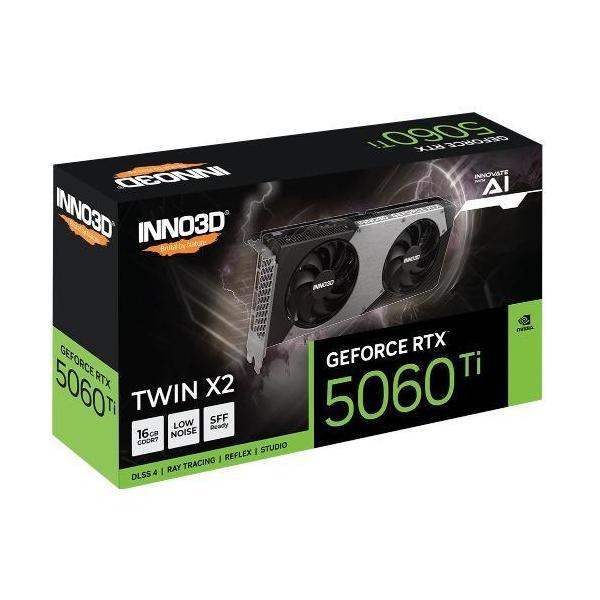

INNO3D GeForce RTX 5060 Ti TWIN X2 16GB GDDR7 2572MHz 3xDP 1xHDMI Graphics Card

The INNO3D GeForce RTX 5060 Ti TWIN X2 is a high-performance graphics card featuring 16GB of GDDR7 memory and a boost clock speed of 2572MHz. It supports up to four monitors with resolutions reaching 4K at 480Hz or 8K at 165Hz via Display Stream Compression (DSC).

Display

• Maximum Digital Resolution: 4K at 480Hz or 8K at 165Hz with DSC
• HDCP 2.3 Standard
• Display Connectors: 3x DisplayPort 2.1b, 1x HDMI 2.1b

Performance

• CUDA Cores: 4608
• Boost Clock (MHz): 2572MHz
• Base Clock (MHz): 2235MHz
• Memory Clock: 28Gbps
• Memory Bandwidth (GB/sec): 448 GB/sec

Storage and Memory

• Standard Memory Config: 16GB
• Memory Interface: GDDR7
• Memory Interface Width: 128-bit

Connectivity

• Supplementary Power Connectors: 1x PCIe 8-pin cables
• Minimum System Power Requirement (W): 650W

Features and Support

• Real-Time Ray Tracing: Yes
• Ray Tracing Cores: 4th Generation, 72 TFLOPS
• Tensor Cores: 5th Generation, 759 AI TOPS
• NVIDIA Architecture: Blackwell
• Microsoft DirectX: 12 Ultimate
• NVIDIA DLSS 4
• NVIDIA Ansel and FreeStyle: Yes
• Vulkan API: 1.4
• OpenGL: 4.6
• NVIDIA Encoder: 1x Ninth Generation
• NVIDIA Decoder: 1x Sixth Generation
• OS Certification: Windows 11 / 10, Linux, FreeBSD x86
• NVIDIA Highlights and G-SYNC™-Ready: Yes
• Game Ready Drivers and NVIDIA Studio Drivers: Yes
• NVIDIA GPU Boost™: Yes
• ShadowPlay: Yes

Dimensions

• Length: 250mm
• Height: 116mm
• Width: 41mm
