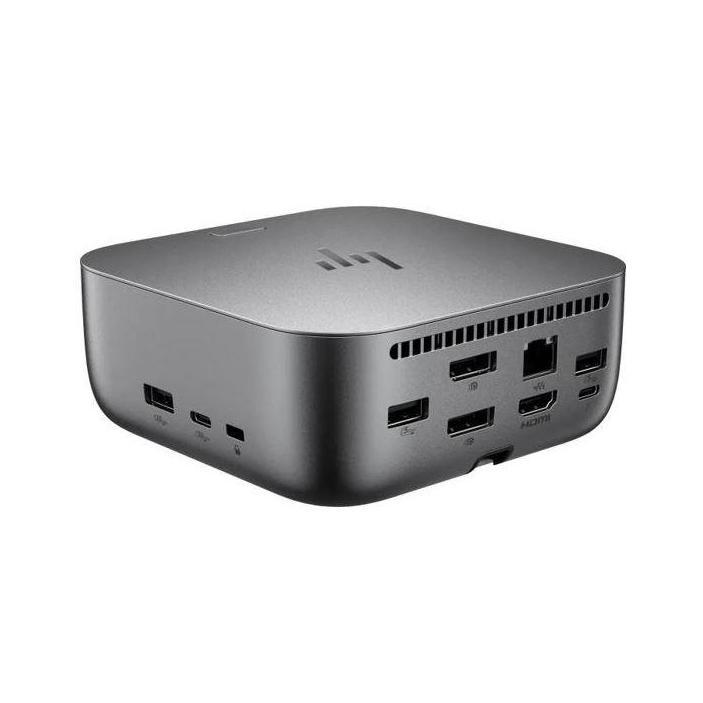

HP Dock G6 Thunderbolt 4 100W 3xDisplays 2xDP 1xHDMI 3xUSB-A 2xUSB-C 2.5GbE RJ45

The HP Thunderbolt 4 G6 Dock is a versatile docking station designed for high-performance workstations and commercial PCs. It supports up to three external displays plus one PC display or four external displays with resolutions up to 8K.

Display

• HDMI 2.1
• Two DisplayPort™ 1.4 ports

Performance and Connectivity

• Thunderbolt™ 4: 40Gbps signaling rate, up to 100W power delivery (PD)
• Ethernet: 2.5 GbE via RJ-45 port
• USB Ports: Two USB Type-A 5Gbps and two Thunderbolt™ 4 with USB-C® ports

Power

• External power adapter: 120W
• PD profiles: 12V/5A, 15V/5A, 20V/5A, 5V/3A, 9V/3A

Management and Security

• Management Features: HP CMSL, Disconnected Firmware updates, eTag, PXE Boot, Wake on LAN, MAC address pass-through, LAN/WLAN switching, Disable LAN, Event messaging
• Security Management: 1 nano security lock slot, HP Sure Start

Compatibility and Support

• Compatible with Windows 10/11, macOS, Linux, ThinPro, ChromeOS
• Certified collaboration software: Intel® Thunderbolt™ 4 Compatibility
• Notebook Compatibility: Visit HP's website

Physical Specifications

• Dimensions (W x D x H): 12.1 x 12.1 x 4.95 cm
• Weight: 740 g
• Package dimensions (W x D x H): 39.6 x 17.1 x 9.5 cm
• Package weight: 1.08 kg

Environmental Specifications

• Operating temperature range: 32 to 95°F (0 to 35°C)
• Non-operating temperature range: -20 to 60°C
• Humidity range: 10 to 90% non-condensing

Warranty and Support

• Manufacturer Warranty: HP three-year limited warranty
